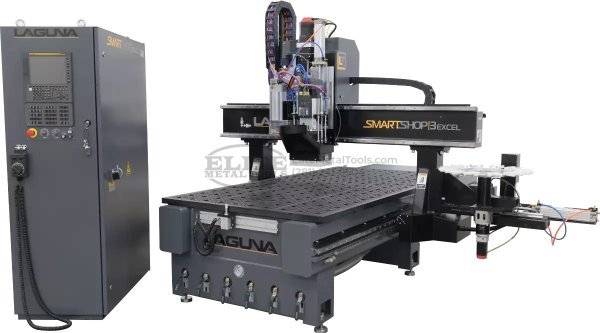

Laguna Tools 4’ x 8’ 220V Three Phase SmartShop 3 Excel Fanuc CNC Router Table SS3 4X8 NDB

Description

The pinnacle of speed and accuracy, the SmartShop® 3 Excel delivers the ultimate cutting power and flexibility. Designed for those customers needing maximum daily output and continuous operation, the Excel delivers performance and accuracy that no other machine can rival.

Utilizing industry-leading FANUC® controls, 1500-watt FANUC® servos combined with a heavy all-welded steel frame promotes faster feed rates, deeper cuts, better edge quality, and higher performance.

Features

• 12HP HSD Spindle
• FANUC® OiF Controls Systems
• 1,500W FANUC® Servo Drive Motors

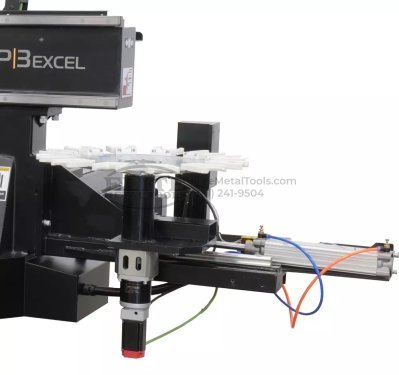

• 12 Position Servo Rotary Auto-Tool Changing System
• 12in Gantry Clearance
• 14in Z-Travel
• Up To 3,000 IPM Rapid Speed
• HSK-63F Tool Holders

Specifications

• Motor: 220V, Three Phase

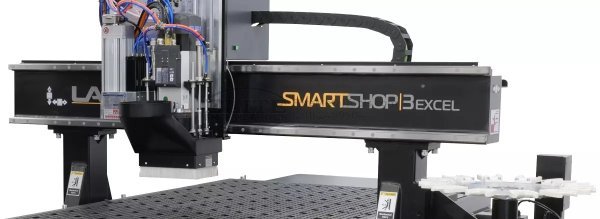

• Gantry
  • FEA-Engineered Heavy Wall
  • All-Steel Bridge
  • Vertical Columns
  • Table Support Base
  • 12in Gantry Clearance
  • 12in of Z-Travel
  • FANUC® Servos
  • Up To 3,000 IPM Rapid Travel
• Spindle Options & Details
  • 12HP HSD Italian-Made Air-Cooled Spindle
  • HSD Boring Block Optional
  • Full 3D Capacity With Helical Interpolation
  • 1,600 in/min Cutting Speed

Available Options

• Volts: 220V, Single Phase
• Plotting CNC ISO20 Attachment
• 5.4° x 1/16” x 1” x 1/4” x 3” Tapered Angle Ball Tip DLC Bit
• 1/4” x 3/4” x 1/4” x 2” Single O Flute Bit
• 1/8” x 1/2” x 1/4” x 2” Single O Flute Bit
• 1-1/2” x 5/8” x 1/2” x 2” 1.5 Flycutter
• 1/4” x 3/4” x 1/4” x 2-1/2” 2 Flutes Down Spiral Bit
• 3/8” x 7/8” x 3/8” x 3” 2 Flutes Compression Bit
• 1/8” x 1/2” x 1/4” x 2” 2 Flutes Down Spiral Bit
• 1/4” x 7/8” x 1/4″ x 2-1/2” 2 Flutes Compression Bit
• 1/4″ x 1” x 1/4” x 2-1/2” 2 Flutes Ball Nose

Additional Information

Product Documents

• Download Brochure
