Laguna Tools Swift 4’ x 4’ 3HP 220V CNC Router with Vacuum Ready Table MCNC 4X4

Description

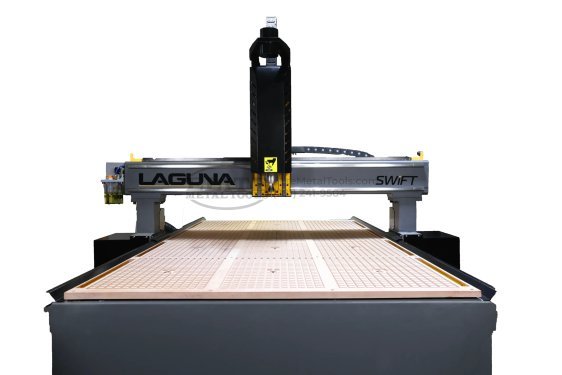

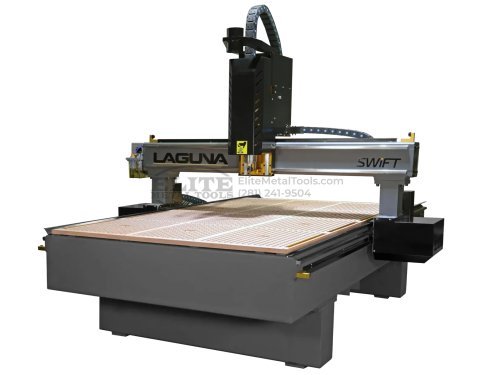

The Laguna Swift Vacuum CNC Router features a work envelope of 48″ x 48″ and includes an industrial-grade liquid cooled electro spindle. The Swift vacuum features a 6-zone vacuum phenolic table.

*Vacuum Pump Sold Separately

Features

• 3HP Water Cooled Electrospindle (ER-20 Collet)
• 6,000 – 24,000 RPM Spindle
• Vacuum Table
• Hand Held Controller
• Gantry Height: 7-1/2″
• Ball Screw On Z Axis
• Double Helical Rack Drive On X & Y Axis

Specifications

• Motor 3 hp very quiet spindle
• Spindle: 1 or 3 Phase Industrial Induction Spindle, LiquidCooled
• Spindle RPM: 6,000 – 24,000
• Controller: Rich Auto DSP Controller
• Dust chute diameter: 4”
• Volts: 220V
  • Three Phase (for other voltages please contact a sales rep)
• Gantry Clearance: 8”
• Machine Work Table: T-Slot
• Z Axis: Precision Ball Screw
• X and Y Axes: Rack & Pinion
• Machine Foot Print: 73”w x 80”l x 55”h
• Work Envelope: 48” x 48”

Available Options

• Plotting CNC ISO20 Attachment
• 5.4° x 1/16” x 1” x 1/4” x 3” Tapered Angle Ball Tip DLC Bit
• 1/4” x 3/4” x 1/4” x 2” Single O Flute Bit
• 1/8” x 1/2” x 1/4” x 2” Single O Flute Bit
• 1-1/2” x 5/8” x 1/2” x 2” 1.5 Flycutter
• 1/4” x 3/4” x 1/4” x 2-1/2” 2 Flutes Down Spiral Bit
• 3/8” x 7/8” x 3/8” x 3” 2 Flutes Compression Bit
• 1/8” x 1/2” x 1/4” x 2” 2 Flutes Down Spiral Bit
• 1/4” x 7/8” x 1/4″ x 2-1/2” 2 Flutes Compression Bit
• 1/4″ x 1” x 1/4” x 2-1/2” 2 Flutes Ball Nose
