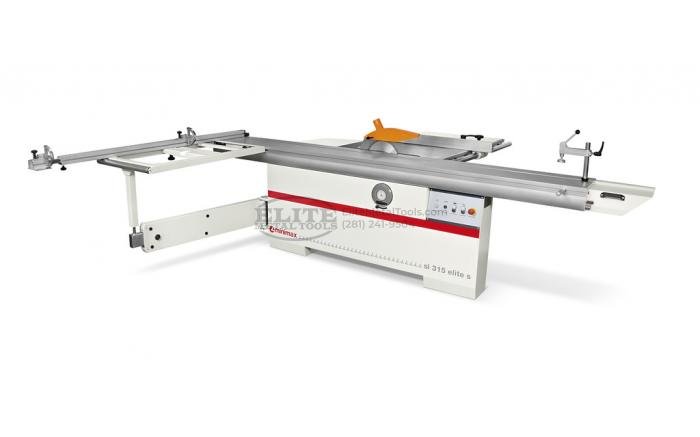

Minimax 12″ Sliding Table Saw SI 315 ES
$14,095.00
- Fixed Table Size: 33″ x 25″
- Table Height: 34″
- Main Blade Speed: 4,000 RPM
- Max Cutting Width with Rip Fence: 50″
Description
Standard Equipment
- Double-hung cast iron trunnion
- Aluminum table and rail with hardened steel guide-ways
- European rip fence with cam-lock, micro-adjustable
- Telescoping crosscut fence with two adjustable flip stops
- Eccentric panel clamp
- Telescoping miter gauge with fence and support panel
- 2-Position sliding table lock
- Dial indicator for saw blade tilt angle
- Table extension on saw out-feed
- External scoring adjustments
- 3/4″ dado capacity
- Telescoping support arm for crosscut support table
- Tool set & operator’s manual
- “CSA”-rated electrical components
Specifications
| Sliding Table Size | 12.5″ x 126″ |
| Fixed Table Size | 33″ x 25″ |
| Table Height | 34″ |
| Max Cutting Width with Rip Fence | 50″ |
| Sliding Table Stroke with Scoring | 126″ |
| Main Blade Max Diameter / Arbor | 12″ / 1″ |
| Scoring Blade Size / Arbor | 120 mm / 20 mm |
| Main Blade Speed | 4,000 RPM |
| Scoring Blade Speed | 8,000 RPM |
| Weight | 1,875 lbs |
Depth of Cut
- 12″ Blade: 3.14″ (80mm)
Electric & Dust Extraction Requirements
- 25 AMPS (3 ph @ 230v) 10 AWG CU THHN Wire
- 24 AMPS (1 ph @ 230v) 10 AWG THHN Wire
- Dust outlet diameter, main: 4.75″
- Dust outlet Diameter, sawblade guard: 2.5″
- Dust Collection Requirements: 1,000 CFM
Options
- Separate Mitre Gauge
*Main Blade Sold Separately*
Additional Information
| Manufacturer | Minimax |
|---|---|
| SKU | SI 315ES |
| Shipping Method | LTL Freight |
| Weight | 1,935 lb |
| Dimensions | 145 × 60 × 60 in |
Product Documents
Additional information
| Weight | 1935 lbs |
|---|---|
| Dimensions | 145 × 60 × 60 in |
| Brand | Minimax |
