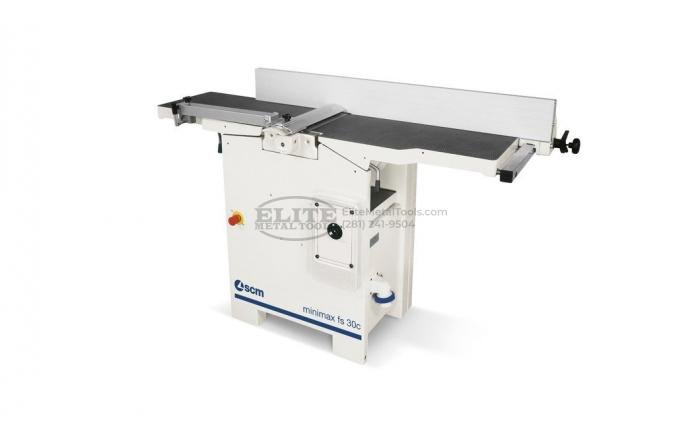

Minimax 12″ XYLENT Combination Jointer and Planer FS 30C X

XYLENT 12” Cutterhead

Your Minimax FS 30C X includes robust features. From the heavy duty 12” jointer to cast-iron tables and the breakthrough “XYLENT” cutterblock technology, this cutterhead eliminates the necessity of balancing single knives. With the addition of the XYLENT cutterblock, you have long-lasting carbide knives that are designed to last.

Quick  Changeover

Changing between jointer and planer is a lot quicker on this machine than other models. Because there are separate dust collection outlets for the jointer and the planer, you do not need to drop the planer table all the way down in order to change back to a jointer. Also, when going back to using the planer function, you don’t have as much distance to travel to get to your planning thickness.

Standard Equipment

• 4.8hp Single phase (230v) motor
• Precision ground cast iron tables
• 3 rows of quarter turn (15x15x2.5mm) knives for Xylent cutterhead
• XYLENT maintenance kit
• American style jointer guard
• Quick tilting jointer fence
• Jointer tables open away from operator
• Two independent dust collection ports
• Tool set & owner’s manual

Specifications

Jointer

• Overall Table Length: 59.75”
• Maximum Jointing Width: 12”
• Cutter Head Speed: 5,200 rpm
• Fence Dimensions: 6” x 51”
• Fence Tilt: 0°- 45°

Planer

• Table Size: 12” x 22”
• Maximum Working Thickness: 9”
• Minimum Working Thickness: 1/8”
• Maximum Stock Removal: 1/8”
• Feed Speed: 23 fpm

Electrical

• Motor: 230v / 1ph
• Overall Dimensions: 32” x 28” x 59”
• Base Dimensions: 26” x 19”
• Weight: 595 lbs
• Dust Collection Outlet Diameter: 4.75”
• Minimum Recommended Dust Extraction Volume: 600 cfm
