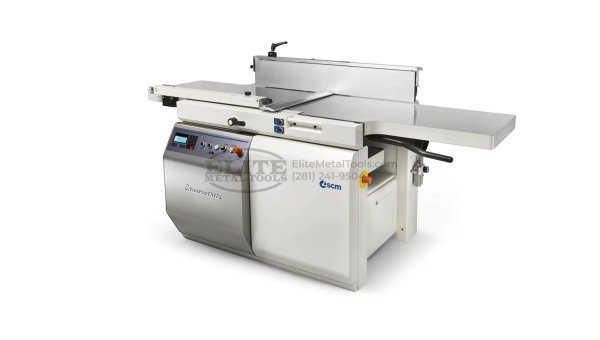

SCM Group L’Invincibile 220V Three Phase 20” Combination Jointer-Planer with Xylent Head and READY Digital Control FS 7

Features

• Servo system for the opening for the tables – fast, ergonomic, and safe: switching from jointer to planer is now easy, safe, and effortless due to the two buttons on the front of the machine that, as well as automatically raising the work tables, re-position the extraction hood and the safety guard

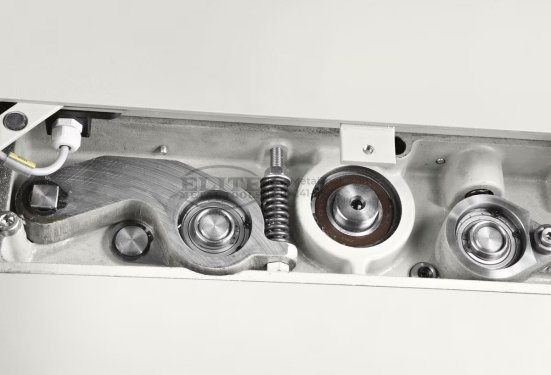

• Feeding rollers on connecting rods, for a perfect finish: the stopping of the work piece and the presence of notches on its surface are eliminated due to the movement system on all three rollers that allows their vertical displacement by rotation and the best linear feeding
• Xylent spiral cutterhead
• Safety/Protections
  • Safety microswitch for correct positioning of surface tables and/or thicknesser chips conveyor
  • Automatic brake on motor
  • Overload switch protection
  • Auxiliary low voltage circuit (110V)
  • Emergency pushbutton
  • Main power switch can be locked in the off position with a padlock

Standard Equipment

• Monoblock base and cast iron tables: the solid, welded base undergoes a treatment call normalization which stabilizes the metal and assures exact tolerances. All machine mechanisms are mounted, aligned, and referenced to the base. This design is vasty superior to frames that are bolted together and have no true reference point. The cast iron tables are machine polished. These castings are ribbed to ensure maximum strength and to avoid problems with the tables warping or breaking during use
• READY digital control for the planer table positioning: the electric positioner ensures maximum precision and reliability for work piece set-up. Automated movement in job, semi-auto, and programmed mode allow easy, quick, and accurate positioning
• Manual movement of infeed surface tables by means of parallelogram system on connecting rods, with readout of cutting depth on scale: this technology has the table height adjustment through a system of four cams (one per corner of support) that pivot on a radius equal to the head radius. The radiused pivot ensures that the table chip breaker remains in the correct position from the head; in addition, it eliminates splintering and a poor quality finish commonly caused by other adjustment systems
• SERVO-SYSTEM – simultaneous lifting and locking of surface tables complete with mechanical safety device: speedy setting up for changeover from jointer to planer with lifting of surface table and automatic positioning of exhaust hood by means of pneumatic system with hydraulic control
• Infeed sectioned pressers
• Rubber-coated outfeed rollers
• Interchangeable feed rollers
• Automatic star-delta start on main motor
• Qty 84 Xylent knives 15x15x2.5mm
• Push stick and push handle
• Toolbox: wrenches, allen wrenches, user manual, spare parts catalog

Specifications

• Max working width: 20.44”
• Total length of surfacing tables: 90.94”
• Max depth of cut (jointer): 0.31”
• Cutterblock diameter: 4.75”
• Spindle speed: 5,000 rpm
• No. of knives: 84 (15x15x2.5mm)
• Aluminum surfacing fence: 47.25” x 7.5”
• Surfacing fence tilting: from 90° to -45°
• Min/max working thickness: 0.12”/9.81”
• Max depth of cut (planer): 0.19”
• Feed speed of thicknesser: 16/26/39/59 fpm
• Exhaust outlets diameter: 4.75”
• Nominal extraction air consumption: 490 CFM
• Air exhaust speed: 66 ft/s
• Air pressure requirements: 95 psi
• Motor power: 15HP – 11kW
• Electrical requirements: 220V Three Phase 60Hz 33Amp
• Machine Dims: 101” x 42” x 45”
• Approx Weight: 2,348 lbs
