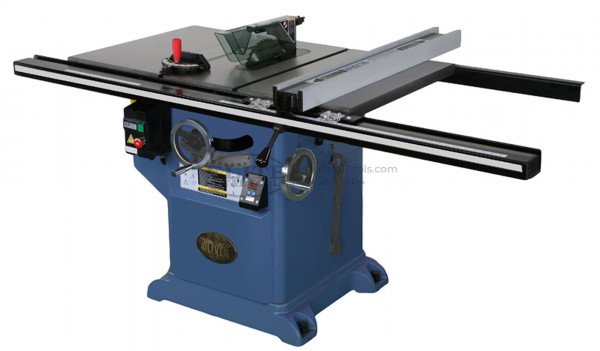

Oliver Machinery 12” Single Phase 5 HP Professional Heavy-Duty Table Saw with 36” Rail 4045.003

Features

• Large precision ground table provides a stable work surface.
• Cast iron base offers a steady platform.
• Fully enclosed cabinet and blade dust shroud for better dust management.
• Precision ground 1” arbor.
• Wide stance trunnion features a left tilt blade.
• Poly V-belt drive smoothly transfers power to the blade.
• Hydraulic assisted blade lift mechanism for easy movement.
• Large chrome hand wheels allow easy movement.
• Includes digital readout of blade tilt.

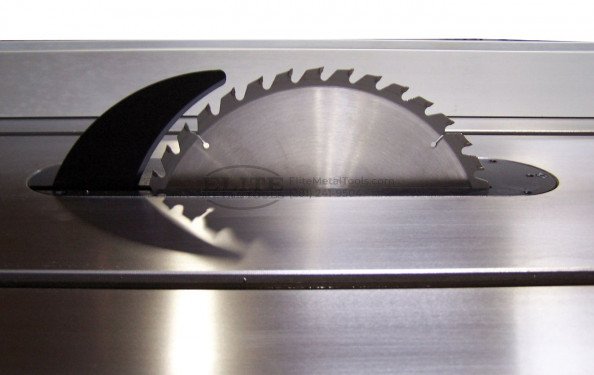

• Riving knife splitter for added safety against kick-back.
• Optimus T-square fence with 36″ rip capacity.
• 36” rail includes (2) cast iron extension wings.
• Magnetic controls with emergency off switch.
• Powerful single phase TEFC motor

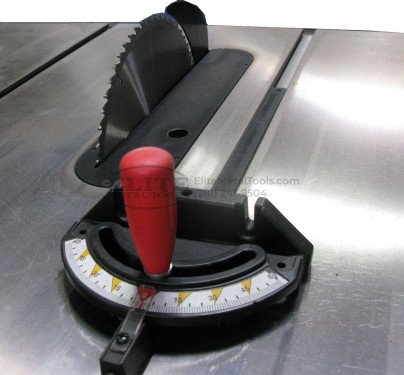

• Miter gauge included.
• Blade not included.

Specifications

• Model Number: 4045
• Stock No. (5HP, 1Ph): 4045.003
• Blade Diameter: 12″
• Arbor Diameter: 1”
• Blade Tilt: Left
• Arbor Speed: 3,450 RPM
• Maximum Depth of Cut at 90°: 4″
• Maximum Depth of Cut at 45°: 2-2/3″
• Maximum Width of Dado: 13/16″
• Maximum Cut to Right of Blade: 36” or 52” with side table
• Maximum Cut to Left of Blade: 12″
• Dust Port Diameter: 4″
• Table Dimensions w/o Extensions: 30-3/4”D x 24”W
• Wing Size: 30-3/4” x 12”
• Table Height: 36″
• Motor: 5HP, 1Ph, 220V Only (18 Amp)
• Overall Dimensions: 75”L x 45”W x 41”H
• Net Weight: 550 lbs.
• Gross Weight: 750 lbs.
