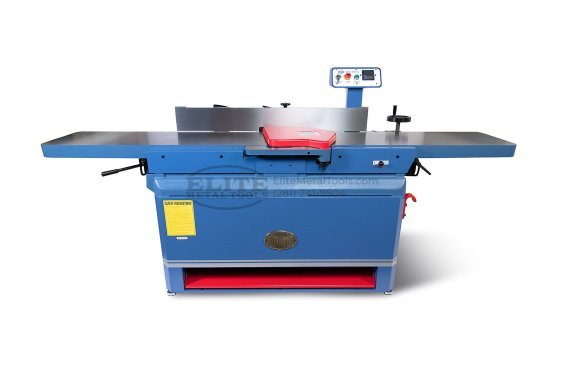

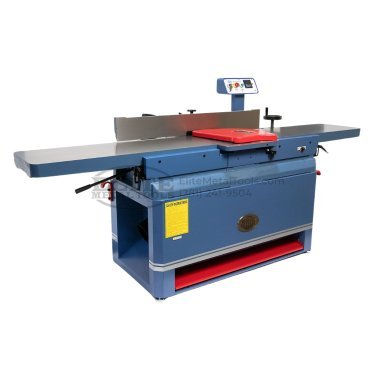

Oliver Machinery 12” 230V Three Phase Parallelogram Jointer with HCX Helical Cutterhead 4265C.053T

Features

• Extra-long precision ground tables provide a stable work surface
• Parallelogram design provides smooth accurate cuts
• Massive cast iron frame offers stable table support
• Helical cutter head includes premium carbide inserts
• 4-sided cutting inserts are indexed and easy to replace
• Wixey DRO shows table infeed table movement for precision cuts
• Foot activated emergency power shutoff
• Lever controlled outfeed table allows easy adjustment
• Long solid cast iron fence features positive stops at 45° and 90°
• Easy to read depth of cut gauge
• Powerful TEFC motor
• Ploy V-belt drive efficiently delivers power to the cutter head

Specifications

• Infeed table travel: ¾”
• Cutterhead speed: 5,500 rpm
• Number of knives (helical): 56 inserts
• Max depth of cut: 1/8”
• Rabbeting capacity: ¾”
• Dust port diameter: 6”
• Table dimensions (LxW): 88” x 12”
• Table height: 34¾”
• Fence dimensions (LxW): 47” x 6”
• Fence tilts: 45°
• Positive stops: 90° and 45°
• Motor: 230V / Three Phase / 5HP
• Overall dims (LxWxH): 88” x 29” x 55”
• Net weight: 814 lbs
• Gross weight: 980 lbs

Optional Add-Ons

• 460V motor available
• 4-sided HCX inserts
• Powerfeed mounting

*Commercial location delivery only – forklift w/extra long forks required to unload*
