Name: Powermatic 1632 Open End Belt Sander, 5HP 1PH 230V 1791250
Brand: Powermatic
SKU: PM9-1791250
Price: 10064.00 USD
Availability: InStock

Powermatic 1632 Open End Belt Sander, 5HP 1PH 230V 1791250

$10,064.00

Air pressured oscillating movement for smoother surfaces
Choose from 15 or 32.5 FPM dual feed speed
Conveniently mounted load meter maintains constant check during operation
Extendable workpiece support arm
Front facing emergency safety stop

SKU: PM9-1791250 Category: Wide Belt Sanders

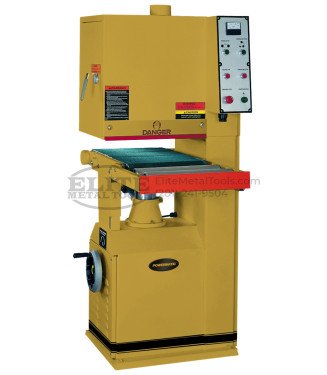

The 16" Open-End Belt Sander has front mounted controls and a load meter, which maintains a constant check during operation. Metal-tipped safety limiters inside the machine will stop the sander immediately should belt breakage occur. The combination head means a more consistent finish, and pneumatic conveyor belt tracking keeps belts automatically centered.

Air pressured oscillating movement for smoother surfaces
Choose from 15 or 32.5 FPM dual feed speed
Conveniently mounted load meter maintains constant check during operation
Extendable workpiece support arm
Front facing emergency safety stop
Limiters will stop sander instantly if belt breakage occurs
Pneumatic sanding belt tracking keeps belt centered
Side access door for easy belt changes
Combination head promotes a more consistent finish

Specification	Value
Maximum Board Width (In.)	16
Style (Type)	Wide Belt Sander
Feed Rate (FPM)	15/32.5
Sanding Belt Speed (FPM)	2,200
Maximum Board Thickness (In.)	5
Minimum Board Length (In.)	13-3/4
Air Required	4 at 5 atm
Feed Motor Power (HP)	1/4
Motor Power (HP)	5
Dust Collection Minimum CFM Required (CFM)	800
Dust Port Outside Diameter (In.)	4
Motor Phase	1
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Recommended Circuit Size (Amps.)	40
Weight	1106.0000
Width	0.0000
Height	0.0000
Length	0.0000
