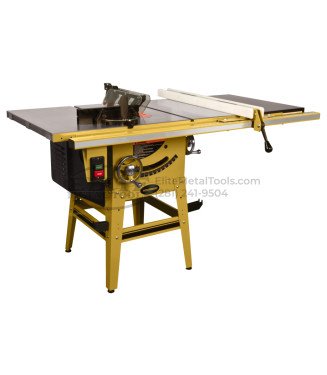

Powermatic 64B, 1.75 HP 115/230V, 50″ Fence with Riving Knife 1791230K
$3,013.00
- Accu-Fence® locks to rail without play for increased safety and precision

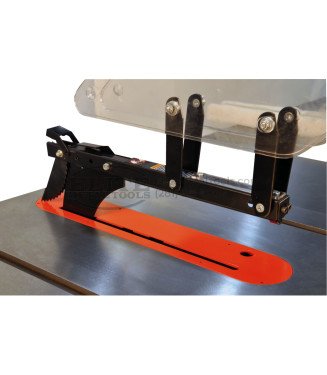

- Blade guard and riving knife have quick release for tool-less mounting and removal
- Built-in dust port increases dust collection efficiency
- Cast iron trunnion ensures smooth blade positioning
- Chrome-trimmed handwheels are ergonomically designed
The 64B table saw, with left tilt arbor, offers 1-3/4 horsepower in dual voltage to meet the demands of the professional contractor. The transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. An arbor lock is accessed from above the table, eliminating the need for dual blade wrenches. The T-slot miter gauge has rack-and-pinion angle setting, positive stops and extension plate for expanded workpiece support. The 64B has cast iron table and wings with front edge bevel, and the working area is further expanded by the melamine-surfaced wood extension table. The exclusive Accu-Fence® system is available in 30” or 50” rip cut capacity. Storage hooks on the stand keep your accessories within reach.
- Accu-Fence® locks to rail without play for increased safety and precision
- Blade guard and riving knife have quick release for tool-less mounting and removal
- Built-in dust port increases dust collection efficiency
- Cast iron trunnion ensures smooth blade positioning
- Chrome-trimmed handwheels are ergonomically designed
- Micro-adjust miter gauge with extension plate offers wider crosscut support
- Precision ground cast iron work surface features a beveled edge for smoother operation
- Riving knife maintains close blade proximity to reduce chance of kickback
| Specification | Value |
|---|---|
| Blade Diameter (In.) | 10 |
| Style (Type) | Contractor |
| Arbor Diameter (In.) | 5/8 |
| Arbor Speed (RPM) | 3800 |
| Maximum Depth of Cut (In.) | 2-1/8 or 3-1/8 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Maximum Diameter of Dado (In.) | 8 |
| Table Size (L x W) (In.) | 44-1/4 x 27 |
| Maximum Rip Right of Blade (In.) | 50 |
| Maximum Rip Left of Blade (In.) | 12 |
| Maximum Width of Dado (In.) | 13/16 |
| Table Type | Cast Iron |
| Motor Power (HP) | 1-3/4 |
| Miter Gauge Type | T-Slot with Stops |
| Table Height from Floor (In.) | 36 |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 115/230 |
| Overall Dimensions (L x W x H) (In.) | 79-5/8 x 43 x 42 |
| Prewired Voltage (V.) | 115 |
| Motor Amps | 6 |
| Recommended Circuit Size (Amps.) | 20 |
| Net Weight (Lbs.) | 293 |
| Gross Weight (Lbs) | 304 |
| Height | 22.0000 |
| Length | 39.0000 |
| Weight | 470.0000 |
| Width | 25.0000 |
Additional Information
| Manufacturer | Powermatic |
|---|---|
| SKU | PM9-1791230K |
| UPC | 731325184563 |
| Shipping Method | LTL Freight |
| Weight | 470 lb |
| Dimensions | 39 × 25 × 22 in |
| Country of Origin | Taiwan |
Product Documents
| Weight | 470 lbs |
|---|---|
| Dimensions | 39 × 25 × 22 in |
| Brand | Powermatic |
| Country of Origin | Taiwan |
