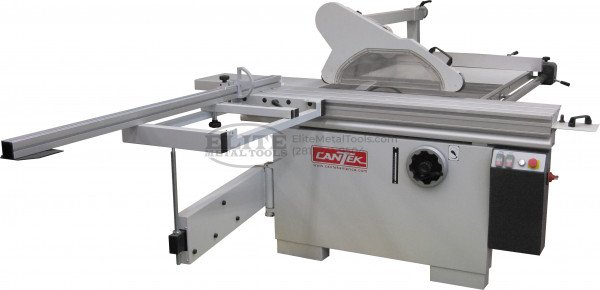

Cantek 5 HP Single Phase 5’ Sliding Table Saw with Scoring P30

Features

• 5 HP main motor with ¾ HP scoring motor

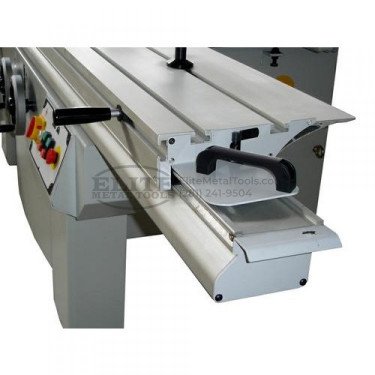

• Precision aluminum sliding table with hardened steel guides and bearing slides
• Solid cast iron main table which is ground and polished
• Heavy-duty outrigger for strong support of work-piece during cutting operations
• Solid rip fence with manual fine adjustment and locking lever
• Easy to access external scoring adjustment
• Extension table at side and back of main table
• Aluminum extruded crosscut fence with one flip stop
• Manual rise/fall of the main saw blade
• Manual tilting of the saw blades with angle indicator conveniently located by adjustment handwheel

Optional Equipment Included:

• Eccentric hold down clamp
• Mitre Fence

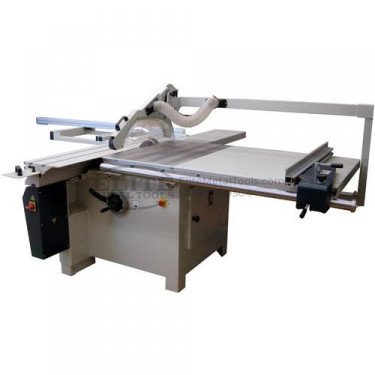

• CE Overarm Guard with Dust Port
• Wedge for Solid Wood Ripping

Specifications

• Sliding table dimension: 63” x 12.4”
• Cast Iron table: 21½” x 35 ¼”
• Extension table (rear): 18” x 17 ½”
• Extension table (front): 12 ½” x 32 ½”
• Table size: 39 ½” x 68”
• Round rail: φ50mm
• Main saw blade (Max.): 12” (14”) 305mm (355mm)
• Main saw bore: 30mm
• Max. cutting height at 90°(355mm): 3 ½” (4 ½”)
• Max. cutting height at 45°(355mm): 2 ½” (2 ¾”)
• Main motor power: (1ph) 5 HP
• Main blade speed: 4000 RPM
• Scoring saw blade: 120mm
• Scoring saw blade bore: 20mm
• Scoring blade motor power: 3/4 HP
• Scoring blade speed: 8000 RPM
• Cutting width – ripping: 51” max
• Cutting width adjustment: Manual
• Main saw blade tilting adjustment: Manual (0°~ 45°)
• Main saw height adjustment: Manual
• Scoring saw height adjustment: Manual
• Saw guard: CE Guard Included
• Weight:
  • (Machine) 904 lbs (410kgs)
  • (Sliding table) 133 lbs (60kgs)
• Dimensions:
  • (Machine) 55.11” x 43.3” x 41.73” (1400x1100x1060mm)
  • (Sliding table) 66.9” x 18.5” x 9.44” (1700x470x240mm)
• Electrics: 230/1/60
• Amps: 28 Full Load Amps
