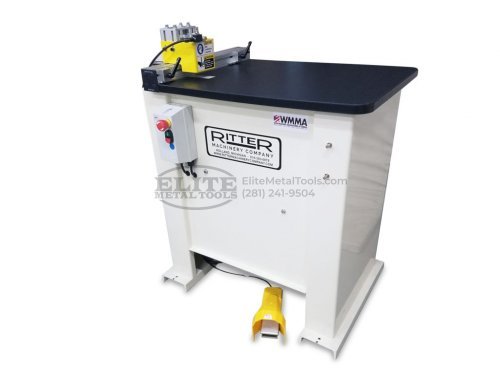

Ritter Machinery 110V Single Phase Single Spindle Pocket Hole Drill R200T

Description

The RITTER T200T is a Single Spindle Pocket Hole Drill designed specifically for pocket journey face frame construction. This machine, boasting a 14-degree single spindle, a 6,100 RPM spindle speed, and a 1.5 HP spindle drive motor, delivers the most efficient and economical method of frame joinery. Notably, it can provide up to a 50% reduction in frame construction time. By eliminating dowel boring, dowel and glue insertion, clamping time, and joint misalignment, the R200T ensures flush and tight joint construction across all types of wood. Its design allows for frame disassembly and joint repositioning without the loss of material, significantly increasing system productivity. Interestingly, the design of the R200T pocket hole drill also negates the need for glue application to the joint, further simplifying the construction process. This highly effective machine is operated via foot-activated boring cycle, making it a standout choice in modern woodworking.

Features

• 1.5 HP Spindle Drive Motor, TEFC
• Foot Actuated Boring Cycle
• Adjustable Fence with (2) Stops
• Tooling included

Specifications

• Single Spindle: 14 Degree
• Spindle Speed: 6,100 RPM
• Air: 2 CFM at 80-100 PSI
• Work Height: 38.25”
• Table Area: 24” x 30”
• Footprint: 34.5” x 25.25”
• Electrical Requirements: 110V Single Phase 1.5HP
• Machine Dims: 35” x 26” x 46”
• Approx Weight: 550 lbs
