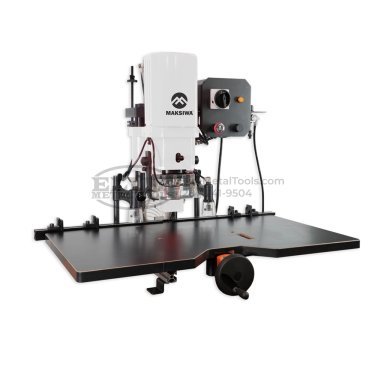

Maksiwa 110V Single Phase 18”x31½” Hinge Boring Machine HBM.1000

Description

The HBM.1000 is a versatile boring and insertion machine for precise hinge assembly. It streamlines setup and operation, making it easy to bore and insert hardware efficiently for system and hinge connections.

Features

• Vertical boring and component insertion
• Works with hinges, mounting plates, and connectors
• Simple setup and easy operation
• Compatible with system boring
• Ensures accurate and consistent hinge cup holes for installations

Specifications

• Table Size: 18” x 31½”
• Machine Table Height: 5-3/8”
• Machine Table Depth: 2¾”

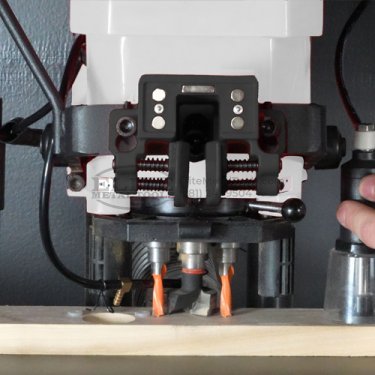

• Hinge Boring Bit Diameter: Carbide Tipped – 1.38” (35mm)
• Hinge Boring Bit Rotation: Right
• Hinge Boring Shank: 0.39” (10mm)
• Hinge Boring Length: 2.24” (57mm)
• Drill Bits Diameter: Carbide Tipped – 0.31” (8mm)
• Drill Boring Bits Rotation: Left
• Drill Boring Shank: 0.39” (10mm)
• Number of Stops: 2 Left / 2 Right
• Max Depth of Stroke: 4-5/16”
• Boring Distance Center Spindle: 0 – 2¾”
• Air Requirement: 90psi – 3 SCFM
• Avg Noise Emissions: 78 dB
• Motor Specs: 1HP / 1.1kW / 3400 RPM
• Electrical Requirements: 110V Single Phase 13.6Amps
• Machine Dims: 33-7/16” x 28-3/8” x 31½”
• Approx Weight: 110 lbs
