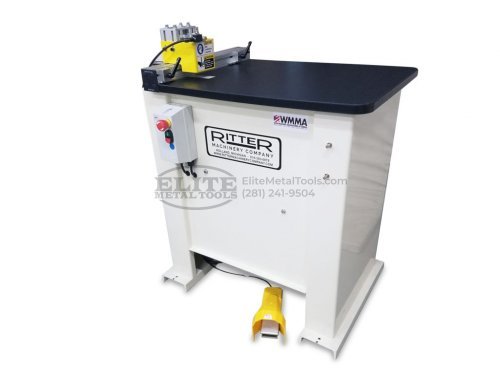

Ritter Machinery 460V Three Phase Double Spindle Pocket Hole Drill R220T3

Description

Ritter Machinery offers the R220T Double Spindle Pocket Hole Drill, a cutting- edge machine designed specifically for pocket joinery face frame construction. Carrying over many advanced features from the R200T, such as a 1.5 HP spindle drive motor, a foot-activated boring cycle, and a spindle speed of 6,100 RPM, the R220T add a 14-degree Double Spindle. This model significantly enhances productivity by eliminating dowel boring, dowel and glue insertion, clamping time, and joint misalignment, thus offering up to a 50% reduction in frame construction time. The R220T’s standout feature is its pocket borer design, which eliminates the need for glue at the joint. The Ritter Machinery R220T’s flexibility allows for frame disassembly and joint repositioning without the loss of material. Its manageable dimensions and weight make it a versatile choice for various woodworking needs. The R220T is the only double pocket hole machine on the market.

Features

• 1.5 HP Spindle Drive Motor, TEFC
• Foot Actuated Boring Cycle
• Adjustable Fence with (2) Stops
• Tooling included

Specifications

• Double Spindle: 14 Degree
• Spindle Speed: 6,100 RPM
• Table Area: 24” x 30”
• Air: 2 CFM at 80-100 PSI
• Work Height: 38.25”
• Footprint: 34.5” x 25.25”
• Electrical Requirements: 460V Three Phase 1.5HP
• Machine Dims: 35” x 26” x 46”
• Approx Weight: 550 lbs

Optional Add-Ons

• 20mm Drill Spindle Spacing (R220T.20)
