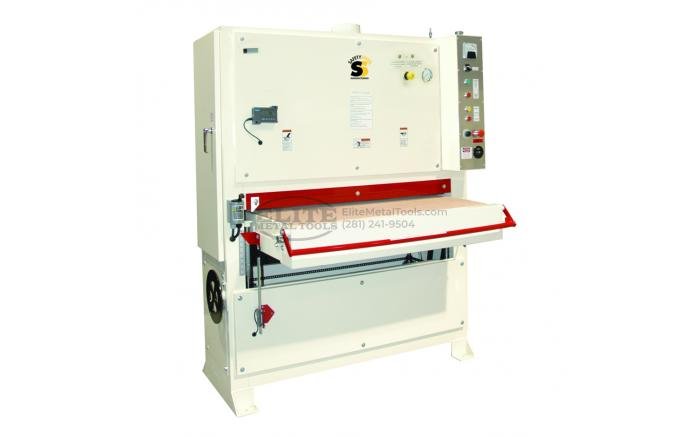

Safety Speed 10 HP Single Phase 220V 43″ Wide Belt Sander 4375

Description

The larger 75” belt has 25% more abrasive surface than the smaller 60” belt machines. The larger belt translates to increased capacity, less heat accumulation, less maintenance and fewer belt replacements. With a fully adjustable platen these sanders will deliver a perfect smooth finish every time.

Standard Equipment

• Photo electric belt tracking.
• Pneumatic belt tensioning.
• 2 ½” graphite covered felt pad and adjustable platen.
• 2 rubber-covered pinch rollers 2 ½” OD.
• 2 machined idler rollers 4 ¼” OD with 1″ bearings.
• Rubber-covered contact roller 5 ¼” OD with 1 ⅝” drive bearing.
• Conveyor table set on four 1″ acme thread jackscrews.
• 2 height adjustment indicators.
• 6″ internal dust chute.
• 5 emergency stops.
• 3 year warranty.

Optional Equipment

• Hour meter.
• Digital readout.
• Power lift table.

Specifications

• Min. Working Length:  12″/305mm
• Max. Wroking Length:  Unlimited
• Main Motor Options:  10HP, 1PH 220V, 20HP, 2PH 208V, 30HP, 3PH 230V
• Max. Working Width:  42″/1070mm
• Max. Working Thickness:  7-1/4″/184mm
• Min. Working Thickness:  1/8″/3mm
• Vacuum Requirement:  1000 CFM
• Conveyor Speed:  0-18 FPM
• Durometer of Contact Roller:  60
• Sanding Belt Size:  43″ x 75″
• Shipping Weight:  2389lbs
• Shipping Dimensions:  60″ x 62″ x 71″

Additional Information

Product Documents

• Download Brochure
• Download Manual

Product Videos

• Product video 1
