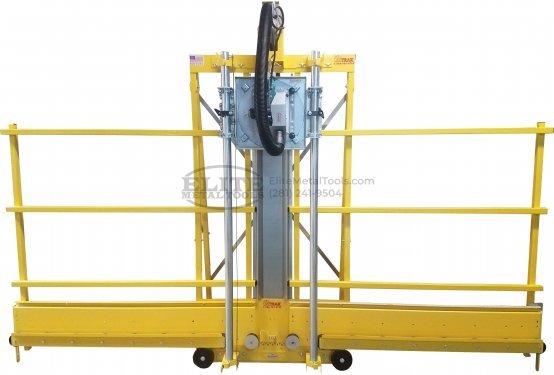

Saw Trax 2000 Series 64” Cross Cut Makita Hypoid Vertical Panel Saw with Full Size Frame 2064

Description

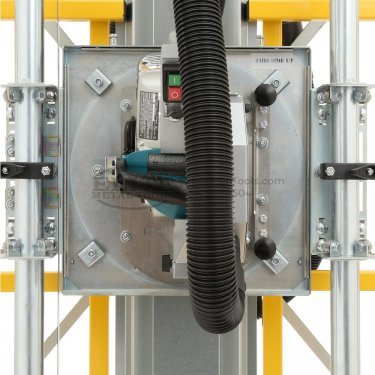

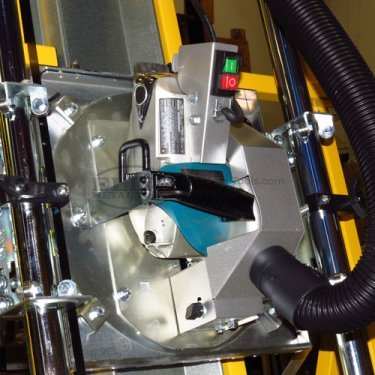

The 2000 series is the workhorse, it uses steel sleeves over the plastic rollers (like a bullet proof vest) to prevent damage to the rollers from dropping heavy sheets of material on them. A push button Safety Switch is used on the modified Makita 7.25″ Hypoid saw (because the handle is removed).  The hypoid has replaced the old technology of the worm drive skill saw being used on other panel saws. The Hypoid was designed to give the power of a worm drive but with different materials and gearing mesh cogs so there is no need for oil making it virtually maintenance free.

The 2000 series has the same accessory package as the Varsity and 1000 series including a factory attached folding stand, factory attached frame wheels, spinning insert, an outstanding dust collection package, rip pointers, left and right tapes with a stop that has a strip bar attached.

Features

• Accu-Square system indexes the guide tube to the frame so adjustments can be made in to be within 1/64″ of square over the length of the cut and locked into place so it does not shift.
• Unique bearing system uses sealed steel bearings for accurate and smooth movement of the carriage.
• The Hypoid Makita is designed for longer hours of operation on harder materials
• Spring loaded counter balance allows the saw to come up by itself and just needs a nudge to get to the top of the tubes.
• Saw operates on a spinning insert plate for both vertical and horizontal cuts
• Comes equipped with dust containment hood and viewing port

Standard Equipment

• Powder coated frame
• Zinc guide tubes
• Accu-Glide sealed bearing system
• Standard Carriage System
• Retraction Mechanism
• Cord Holder
• Center Material Step

Package Includes

• Makita Hypoid drive 7.25″ saw
• Spinning saw insert plate
• Dust hood, hose, brush
• Folding Stand and Wheels
• Steel covered material rollers
• Dual Rip Gauge
• Stop, Bar and Tapes

Specifications

• Arbor: 5/8″
• Amps: 15
• Cross Cut: 64″
• Cut Depth: 1.75″
• Frame Size: 120″
• Blade Size: 7.25
• Blade Material: Carbide-Tipped
• No Load Speed: 5800 RPM
• Weight: 480 lbs

Optional Accessories

• Full Mid-Fence
• Floating Router Plate
• Full Builder’s Extensions
• Laser Pointer
• Sheet Dolly
