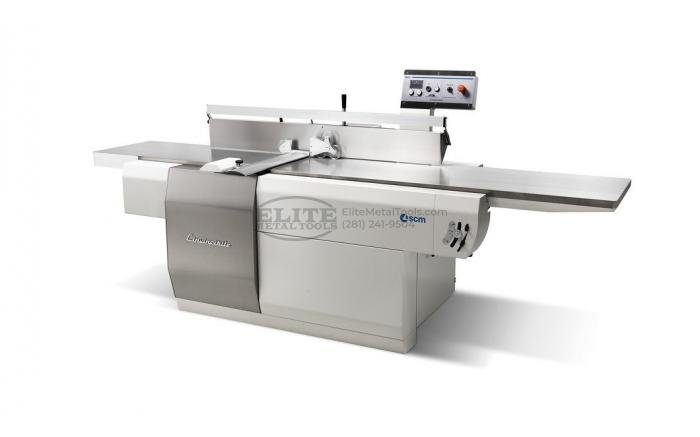

SCM Group 20″ L’Invincibile Long Bed Jointer with Xylent Head F7 X
$24,195.00
- XYLENT Cutterhead
- Motor Horsepower: 11 HP
- Total Table Length: 118 ¼” (3008mm)
- Max. Depth of Cut: 5/16 (8mm)
Description
Programmable 20” long bed jointer
The L’invincibile F 7 X is our most robust and heaviest duty, long bed 20” jointer designed to meet the needs of high production shops. Standard features abound on this machine to make it both as efficient and dependable as possible without sacrificing safety.
XYLENT Cutterhead
This amazing SCM Group L’invincibile Jointer now comes with the most innovative solution for soundless planning in the world. The 20” cutterhead version comes with a spiral knife cutterblock with 3 series of knives. Totaling 84 plates of 15x15x2.5mm. These are four self-locking and self-centering screw knives. With each cutterhead you will also receive 1 dynamometric key for the correct and safe use of the locking mechanism (think of a mini torque wrench). Additionally, you will receive two inserts for the dynamometric key.
Major Features
- XYLENT helicoidal, 3-series of knives cutterblock insert head with quick change knives
- Overhead Control Panel
- Electrical movement of infeed table with digital readout of cutting depth
- Additional Overturning fence for processing thinner pieces.
- Magnetic starter with overload protection
- Heavy Cast-iron jointer fence and tables
- Smart Lifter cutterhead guard planer protection
- 118+ Inch long table length with ribbed cast tables
- Parallelogram movement of tables
- Tool set
- Dust hood
Specifications
- Motor Horsepower: 11 HP
- Total Table Length: 118 ¼” (3008mm)
- Infeed Table Length: 70” (1775mm)
- Outfeed Table Length: 46 ½” (1180mm)
- Table Width: 20 ½” (520mm)
- Working Capacity: 118” x 20 ½” (2750mm x 520mm)
- Max. Depth of Cut: 5/16 (8mm)
- Cutter Head Diameter: 4 ¾” (120mm)
- RPM: 5000 RPM
- No. of knives: 84
- Knife Dimensions: 15mm x 15mm x 2.5mm
- Fence Size: 59” x 7” (1500mm x 175mm)
- Fence Tilt (degrees): 0° – 45°
- Dust Hood Diameter: 120mm
- Noise Level (dB): 75
- Overall Dimensions: 119″ x 56″
- Shipping Weight: 2,250 lbs
- Net Weight: 1,875 lbs
- Electrical Requirements: 230V
- Dust Extraction: 980 CFM
Additional Information
| Manufacturer | SCM Group |
|---|---|
| SKU | L'Invincibile F7 X |
| Shipping Method | LTL Freight |
| Weight | 2,250 lb |
| Dimensions | 119 × 65 × 65 in |
| Country of Origin | Italy |
Product Documents
Product Videos
| Weight | 2250 lbs |
|---|---|
| Dimensions | 119 × 65 × 65 in |
| Brand | SCM Group |
| Country of Origin | Italy |
