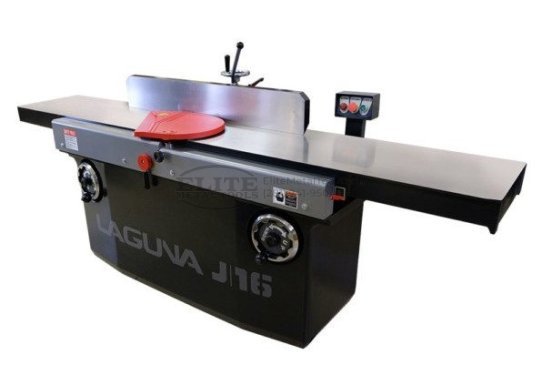

Laguna Tools J|16 5HP 220V Three Phase 16″ Industrial Jointer with ShearTec I Cutterhead MJO6405-5HP-3PH-0800
$13,598.00
- Table Size: 16″ x 98″
- Cutterhead Speed: 5000 RPM
- Cutterhead Diameter: 110 mm
- Motor: 5HP, 220V, Three Phase
Description
Description

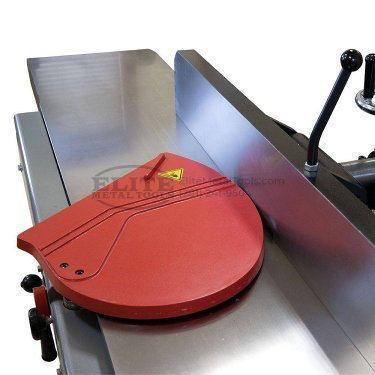

The J|16 Jointer is the true heavyweight of jointers. Our 16″ version features a total length of over 8 feet. The heavy cast-iron tables are supported by parallelogram adjusters and controlled through precision hand-wheel adjusters. The Laguna ShearTec cutterhead is equipped with German carbide insert knives for maximum durability and quick replacement. The fence is a heavy casting supported by a large diameter shaft with rack and pinion movement for smooth, repeatable accuracy. The overhead control panel allows for quick, easy operation. The swing-away guard is easily adjustable and removable for knife replacements.
Specifications
- Table length: 98”
- Jointer Width: 16”
- Table Height: 31 ½”
- Parallelogram Adjustments
- Jointer Fence Tilt: 90 45 degrees
- Motor: 5 HP, 220V, Three Phase
- Cutterhead Speed: 5000 RPM
- Cutterhead Diameter: 110 mm
- Cutterhead: Laguna ShearTec I
- Cast Iron Body
- Over Head Controls
- Rack and Pinion Fence
- Ship Weight: 1400 Lbs
- Net Weight: 1250 Lbs
Additional Information
| Manufacturer | Laguna Tools |
|---|---|
| SKU | MJO6405-5HP-3PH-0800 |
| UPC | 642872596917 |
| Shipping Method | Flatbed |
| Weight | 1,685 lb |
| Dimensions | 117 × 25 × 37 in |
| Country of Origin | Taiwan |
| Warranty | 2 Years (Parts) |
| Warranty Details | Must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. |
Product Documents
Additional information
| Weight | 1685 lbs |
|---|---|
| Dimensions | 117 × 25 × 37 in |
| Brand | Laguna Tools |
| Country of Origin | Taiwan |
| Warranty | 2 Years (Parts) |
Reviews (0)
Shipping & Delivery
Related products

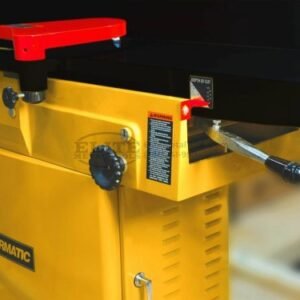

Powermatic 1285 Jointer, 3HP 1PH 230V 1791241
- Large 12" x 84" precision ground cast iron table surface for heavy-duty work
- Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
- Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
- Straight knife cutterhead with 3 high speed steel knives create a clean cut
- Table "lips" on both sides of cutterhead aid in noise reduction

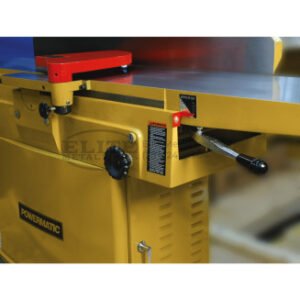

Powermatic 1285 Jointer, 3HP 3PH 230, Helical Head 1791308
