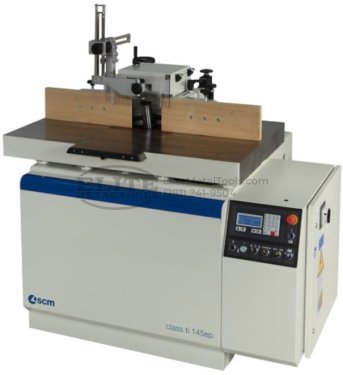

SCM Group 220V Three Phase 5-Speed Tilting 1¼” Spindle Shaper CLASS TI-145EP

Features

• Spindle moulder unit: maximum stability and rigidity in all working condition, thanks to a large spindle moulder column made entirely of cast iron. The spindle is surrounded by a cast iron “cup” that protects the internal mechanical components from shavings and sawdust
• Take full control of your machine – choose among 5 different control unit options
• Safety/Protections
  • Emergency pushbutton
  • Safety microswitch on motor access door
  • Overload switch protection
  • Mechanical brake on main motor
  • “CSA” rated electrical components including cables
  • Main power switch can be locked in the off position with a padlock
  • Auxiliary low voltage circuit (110V)

Standard Equipment

• Powered operating unit movements with digital readouts
• Spindle fence with mechanical adjustment by handwheels, accessible from the front of the machine
  • Adjustment of entire fence in respect of the tool Ø
  • Adjustment of entry fence for thick removal
  • Mechanical readout for the adjustment
• 5 spindle speeds: 3000 / 4500 / 6000 / 7000 / 10,000 rpm
• Reverse spindle rotation (with electrical interlocking for reverse operation)
• MK5 interchangeable spindle with presetting for the “T-SET” rapid tool locking
• Direct motor start
• “FAST” section table with manual external adjustment
• (1) 1¼” spindle
• Toolbox: wrenches, allen wrenches, user manual, spare parts catalog

Specifications

• Worktable dims: 47.19” x 30.69”
• Spindle tilting: ± 45.50°
• Working length of spindle diameter 1¼”: 7”
• Spindle base projection from table with interch spindle: 2.44”
• Max tool diameter retractable under worktable: 11.75” x 1.69”
• Exhaust outlets diameter
  • Spindle hood: 4.69”
  • Machine base: 3.94”
• Nominal extraction air consumption: 800 CFM
• Air exhaust speed: 66 ft/s
• Motor power: 11HP – 8kW
• Electrical Requirements: 220V Three Phase 60Hz
• Machine Dims: 69” x 57” x 88”
• Approx Weight: 2,233 lbs

Optional Add-Ons

• “LL” version for profiling
• Carriage on fix table for small tenoning operations
• Additional spindle (for MK5 interchangeable spindle)
• MK5 right tool taper, with ring and collet
• MK5 left tool taper, with ring and collet
• “T-SET” rapid tool locking
• FEED 48 Feeder
• Manual feeder support
• Control Panel Options
  • “READY” version
  • “READY 3” version
  • “READY 3 UP” version
  • “EYE-S 2 UP” version
  • “EYE-S 3 UP” version
• “FLEX” shaper fence with mechanical adjustment
• Presetting for AIGNER fences
• “TL” version for tenoning-profiling
• PRO-10 “TL” version for tenoning-profiling
• Barcode reader
• Automatic star-delta start
• 14HP – 11kW motor

**This machine requires a mandatory installation and training from the manufacturer. This comes as an additional charge that is NOT included in the website price. This additional charge includes the installation and full training on how to operate and maintain the machine. Please contact one of our sales representatives for more details**
