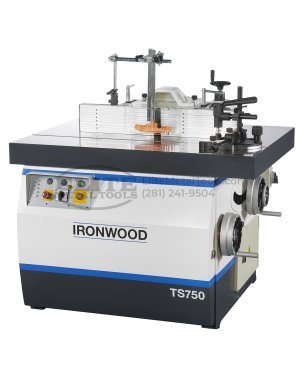

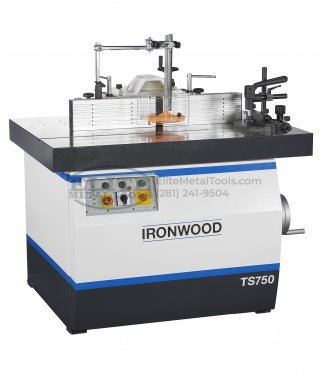

Ironwood 230V 7.5HP Tilting Spindle Shaper TS750

Description

The Ironwood TS750 Tilting Spindle Shaper caters to the American craftsman as it offers unparalleled smooth cutting operations and performance. This machine features a large, heavy-duty cast-iron ground and polished table with insert rings to ensure maximum rigidity and stability for heavy cutting operations. The Ironwood TS750 shaper highlights a backward tilting interchangeable spindle, quick set-up and adjustments, and maximum stability and precision.

Technical Advantages

• 1 ¼” interchangeable spindle but can also be fitted with ½”, ¾”, 1”, 30 mm, and 35 mm sizes
• Backward tilting spindle provides angled cutting from 10° to -45° with angle indicator and is adjusted with the side-panel handwheel adjustment
• Increased table sizes provide users with additional support when working with larger, more cumbersome work pieces
• Driven by a manual 5-speed, dynamically balanced, v-belt pulley system for speeds of 3000/4000/6000/8000/10000 RPM
• Heavy-duty, cast-iron fence assembly features halves that can be precisely adjusted by a micro-metric adjustment knob
• Dependable fence assembly with fine adjustments and digital readouts on both the infeed and outfeed
• Innovative adjustable guide finger design to provide additional support for the work piece as well as safer operations as the operator passes material through the cutter

Efficiency Features

• Quick manual speed adjustments and are conveniently located through the front panel of the shaper
• Spindle speed indicator lights to assist the operator within the control panel
• Ironwood’s tooling assembly is precisely designed and constructed to secure absolute precision and greater cutting consistency; the spindles are dynamically balanced for extra smooth running at high speeds
• Cast iron miter gauge and hold-down device for improved user operations
• Spindle hand wheel controls for the rise, fall, and tilt are conveniently positioned on the side of the machine with digital indicators
• Operational controls are located within the centralized control panel and include all major control functions:
  • Forward and reverse spindle rotation with a directional indicator light to ensure safe climb-cutting operations
  • Spindle speed indicator lights
  • Power on/off switches

Safety

• Electric spindle brake
• Spindle Lock with limit switch safety that prevents the machine from starting when engaged
• Spindle Protection Guard
• Emergency Stop
• All electrics are UL and CSA approved
• One year warranty

Specifications

• Working table: 960 mm x 1300 mm (37.8” x 51.2”)
• Table height: 900 mm (35.4”)
• Vertical spindle stroke: 180 mm (7.1”)
• Under the nut: 160 mm (6.3”)
• Speeds: 5 Speeds (3000/4000/6000/8000/10000 RPM)
• Spindle height adjustment: Handwheel
• Spindle position display: Mechanical Readout
• Tilt adjustment: Handwheel
• Spindle tilt: 10° to -45° (BACK)
• Spindle size: 1.25″ x 6″
• Spindle rotation: Forward/Reverse
• Max tool diameter (below table): 310 mm (12.2”)
• Max tool diameter (above table): 360 mm (14.2”)
• Motor: 7.5 HP IE3
• SHIPPING DIMENSIONS: 1400 X 1292 X 1400 MM (55.1 X 50.9 X 55.1”)
• SHIPPING WEIGHT: 1,650 LBS.
• DUST EXTRACTION: 5”/ 4”
• Electrical Connection*: 230 Volts | 3-phase | 60 Hz.

*460V power upgrades available upon request. Additional charges may apply.
