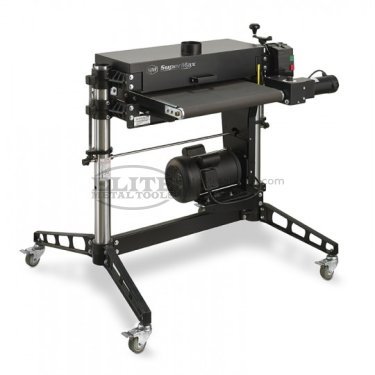

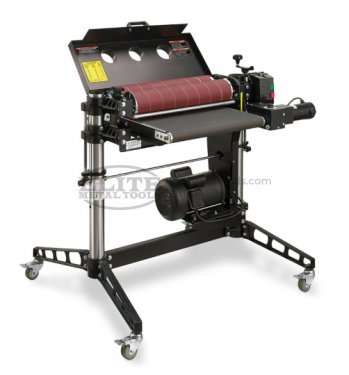

SuperMax 25×2 5 HP 220V Single Phase Double Drum Sander SUPMX-913002

Description

Sand two grits in a single pass with a 25×2 Double Drum Sander. Featuring INTELLISAND Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding.

The 25×2 Double Drum Sander features INTELLISAND® Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock.

Features

• INTELLISAND® Technology: Automatically adjusts conveyor speed based on load
  • Prevents gouging, damaging or burning stock
  • Provides consistent finish even with varying grain pattern and density
  • Greatly increases abrasive planing and dimensioning speed
• Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander
• Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
• Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap
• Easiest access to abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools
• Self-cooling drum prevents overheating and extends abrasive life
• Tension rollers are adjustable in height and hold down pressure, eliminating snipe
• Excellent dust extraction as dust cover is formed to shape of drum
• Metal, not plastic, is formed to maximize air flow and dust extraction
• Heavy-duty cast iron construction for strength, rigidity and reduced vibration
• Mobile base allows for stand and machine to be to moved easily

Specifications

• Sanding Capacity:
  • Max. Width: 25”
  • Min. Length: 3 1/2”
  • Max. Thickness: 6”
  • Min. Thickness: 1/32”
• Dimensions (H x W x D): 43” x 46” x 31”
• Drum: 5” x 25” Extruded Aluminum
• Drum Speed: 1740 RPM
• Dust Hood (Steel Hood, Hinged At Back): (2) 4″ Vacuum Ports, Min CFM: 1000 Recommended
• Ball Bearing (1”): 4 Sealed and Permanently Lubricated
• Conveyor Motor: 100 in. -lb. torque, direct drive D.C. motor, ranged variable, 0-15 FPM
• Drive Motor (TEFC): 5 HP, Single Phase
• Power Requirements: 208-230V, Single Phase, 30 Amp Service
• Casters Included: No
• Cord & Plug Included: No
• Shipping Weight (lbs): 475
• Shipping Dimensions (L x W x H): 50” x 44 1/2” x 44 1/2”

Available Options

• 25” Abrasive Wraps
• Pro DRO
• Caster Set
• Expandable Roller Conveyor

Additional Information

Product Documents

• Download Brochure
