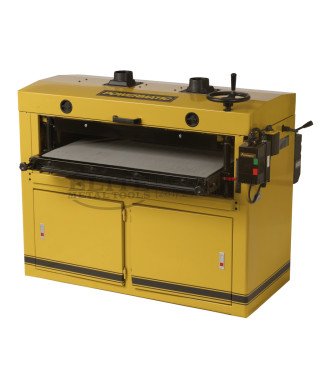

Powermatic DDS-237 Drum Sander, 7.5HP 1PH 230V 1791320
$10,009.00
- Dual drum head for superior finish
- Dual dust ports with directional baffles for more efficient dust removal
- Forward/reverse conveyor belt grips stock evenly
- Full size cast iron table for solid support
- Hard durometer rubber coating on steel drums provides flat, smooth finish
Description
The production class Powermatic DDS-237 Dual Drum Sander that is loaded with features. A 7.5HP motor drives the dual steel drums, which have a hard durometer rubber coating to ensure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides vibration free sanding, with plenty of storage space underneath.
- Dual drum head for superior finish
- Dual dust ports with directional baffles for more efficient dust removal
- Forward/reverse conveyor belt grips stock evenly
- Full size cast iron table for solid support
- Hard durometer rubber coating on steel drums provides flat, smooth finish
- Independently adjustable rear drum for fine tuning
- Two-speed gearbox for wide range of sanding projects.
| Specification | Value |
|---|---|
| Drum Length (In.) | 37 |
| Maximum Board Width (In.) | 37″ |
| Style (Type) | Dual Drum |
| Drum Speed (RPM) | 1,700 |
| Conveyor Speed (FPM) | 8 and 12 |
| Drum Diameter (In.) | 6 |
| Maximum Board Thickness (In.) | 5-1/4 |
| Minimum Board Length (In.) | 9 |
| Minimum Board Thickness (In.) | 1/32 |
| Weight (Lbs.) | 962 |
| Motor Power (HP) | 7-1/2 |
| Dust Collection Minimum CFM Required (CFM) | 1,200 |
| Dust Port Outside Diameter (In.) | 4 |
| Height | 45.0000 |
| Length | 60.0000 |
| Width | 45.0000 |
| Weight | 1142.0000 |
Additional Information
| Manufacturer | Powermatic |
|---|---|
| SKU | PM9-1791320 |
| UPC | 662755945809 |
| Shipping Method | LTL Freight |
| Weight | 1,142 lb |
| Dimensions | 60 × 45 × 45 in |
| Country of Origin | Taiwan |
Product Documents
Additional information
| Weight | 1142 lbs |
|---|---|
| Dimensions | 60 × 45 × 45 in |
| Brand | Powermatic |
| Country of Origin | Taiwan |
