Baker Products 12″ x 12″ Single Cut 30 HP Resaw Model BX

Description

The Model “B” is like the “C” model, except certain features are optional, so you can add just the features you need. “B” & “BX” models feature a fixed height conveyor and precision head/blade height adjustment. These resaws are excellent for resawing random-width material, sizing cants, and many other applications. Thin-kerf technology and the Baker Low Profile Flat Guide System generates up to 60-70% less sawdust and up to 25% more boards, easily outproducing a gang rip.

Baker Multi-head Band Resaws are made of a heavy-duty construction and are simple to maintain and operate. They can be built with as many heads as your production requires.

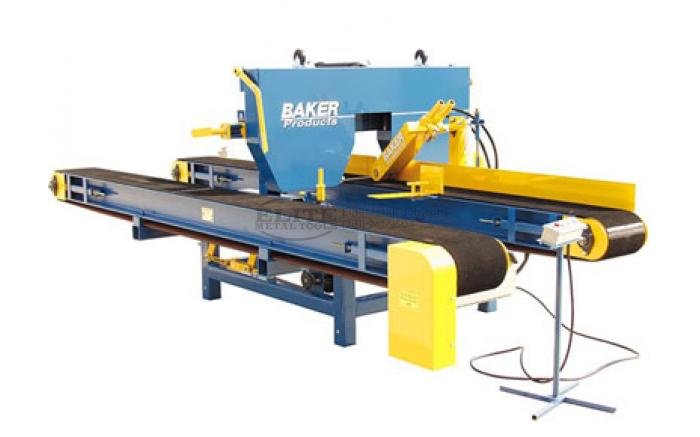

*Shown with optimal return option above.

Features

• Spring tensioning system (standard). Air tensioning optional.
• 13’-’2” × 1” × 0.035” band blades (standard)
• Blade height adjustments can be made quickly via hand crank, allowing for an infinite number of settings
• Baker Low-Profile Flat Guides, for maximum accuracy
• 28”-diameter, CNC-machined,dynamically balanced, all-steel bandwheels
• Simple to operate and maintain
• 2-sided Feedworks
• The thinnest kerf combined with the highest production on the market means higher profits
• Rough-top conveyor belting
• Extra-wide “BX” models available
• All three phase voltages available
• Optional return conveyor
• Many other options available to fit your particular needs perfectly

Power

• Main Drive Motor: 30 HP TEFC (40 HP optional) 22 kw TEFC (30 kw optional)
• Optional Electric: All 3-phase voltages available. Completely prewired. NEMA 12 enclosure with starter, automatic disconnect and overload protection, and start/stop stations.
• Feedworks and Conveyors: On resaws with one to four heads, hydraulic motors are powered by main motor on last head. Resaws with more than four heads have a separate power pack with a 10-hp motor.

Feedworks and Capacities

• 2-Sided Feedworks: Hydraulically powered, 5”-diameter polyolefin wheels, powered hold-down.
• Feed Speed: Fully variable 20 to 120 fpm (6 to 36 meters per minute)
• Conveyor width: 12” (30 cm)
• Material Capacity: 12” x 12” (30 cm x 30 cm)
• Hold-Down Systems: Powered Hold- Down in front of each head, standard. Rear, non-powered Hold-Down optional.

Blades

• 14’2” × 1” × 0.035” hardback or 14’2” × 1¼” × 0.035” hardback or 14’2” × 1½” × 0.035” hardback
• Blade Tensioning: Spring, standard. Air tensioning, optional upgrade.

Specifications

• Number of heads: 1 to any number (up to nine heads on a single frame)
• Guides: Baker Low-Profile Flat Guide System with steel guide plates.
• Saw Dust Outlet: 4” (10.2 cm) diameter, 600 CFM (17 m³/min) recommended.
• Length: Single is 180” (4.57 m). Add 55” (1.4 m) for every additional head
• Width: “B” model is 77” (1.96 m); “BX” is 85” (2.16 m)
• Height: 68” (2.03 m)
• Weight: Single Model “B” is 2,800 lbs. (1,270 kg). Add 1,300 lbs. (590 kg) per additional head. Single Model “BX” is 3,800 lbs. (1,724 kg). Add 1,800 lbs. (816 kg) per additional head

Options

• Digital Readout For Blade Height
• Larger motors
• Air tensioning
• Floating Air Guides
• Hopper Feeder
• TurnArounds
• Return Conveyor
• Hold-Over Wheels
• Computer Setworks
• Material Handling Conveyors
• >Rear Non-Powered Hold Down
