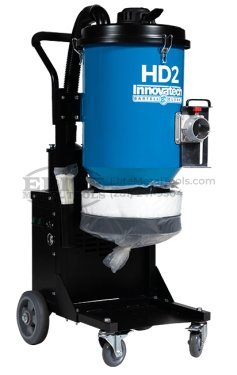

Bartell Global 120V Single Phase 240 CFM HEPA Dust Collector HD2

Description

Bartell Global’s HD series dust extractors feature a two-stage filtering system with jet-pulse filter cleaning. Remove up to 99.97% of dangerous airborne particulates to keep your operators safe and your business compliant with environmental regulations. With two separate motors with individual switches, the airflow/suction can be adjusted for different applications as needed.

Features

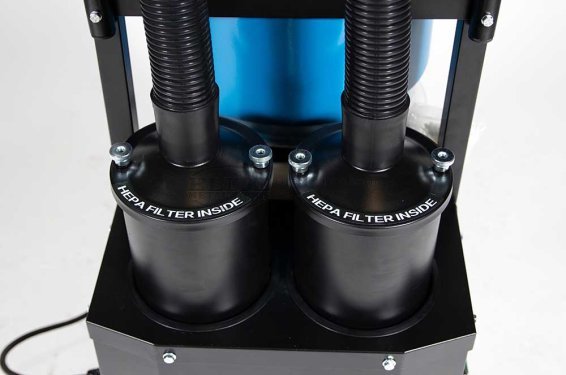

• Equipped with 2 HEPA filters which remove at least 99.97% of airborne particles down to 0.3 micrometers in diameter securing a high standard of quality and safety

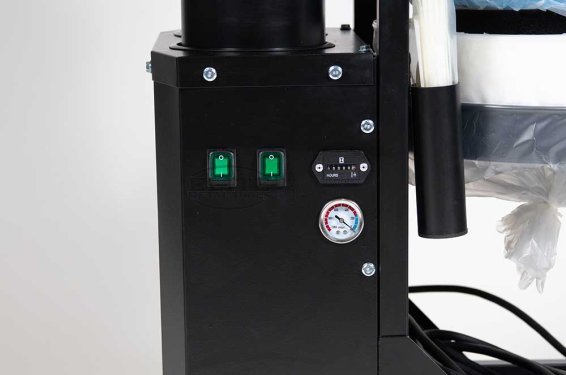

• 2 individual motor switches provide variable suction strength and power
• Reverse-air jet-pulse filter cleaning system effectively cleans and removes dust build-up on the filters.
• Easy to use inlet closure eliminates the need to remove hoses when pulsing and cleaning filters
• Easily connects to hand-operated power tools to extract concrete dust while cutting and grinding
• Equipped with a continuous-bag system for safe & easy disposal of concrete dust
• Comes with 25ft hose and floor wand

Specifications

• Voltage: 120
• AMPS: 16
• Inlet Diameter: 2.5”
• Power Output: 3.2 hp
• Air Flow: 240 cfm
• Water Lift: 100”
• Pre-filter (F8) >99.5% @1.0um: 34 ft²
• HEPA Filter (H13) >99.99% @0.3um: 26 ft²
• Dimensions: 26” x 23” x 50”
• Weight: 119 lbs

Available Accessories

• HD2 Filter
• HEPA Filter
• Vacuum Bags
• 2” x 25ft Hose
• Floor Tool
• Floor Tool Brush
