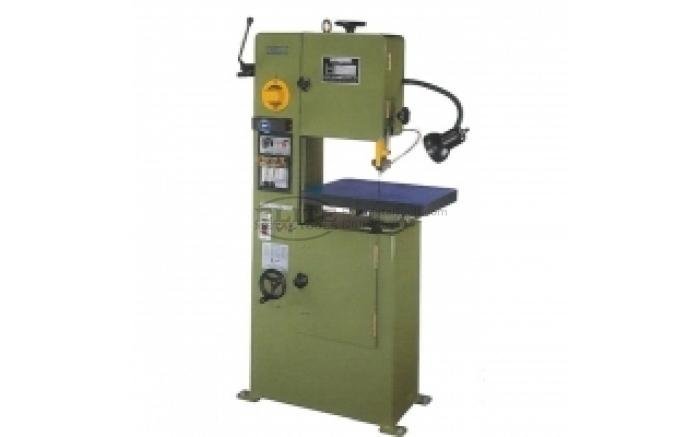

Birmingham 14″ Vertical Band Saw with Blade Welder KB-36
$4,995.00
- Variable Speed
- 1PH
- 110V or 220V
- Saw blade butt welder with integrated annealing unit
Description
Description
- Saw blade butt welder with integrated annealing unit
- Blade shear, grinder
- Built-in blaole and tire cleaning brush
- Low voltage working lamp
- One set of required tools
- One instruction and parts manual
- Variable Speed
- 1PH
- 110V or 220V
Specifications
| Model | KB-36 |
| Cutting Throat Depth | 14″ |
| Capacity Max. Work Height | 9-1/16″ |
| Table Size | 19-1/2″ x 15-1/4″ |
| Table Inclination(4-Ways) | 15″ |
| Saw Blade Length | 111-13/16″ |
| Saw Blade Width | 1/8″ – 5/8″ |
| Saw Blade Speeds | 65-295 FPM |
| Butt Welder Capacity | 2.4KVA 1/8″-5/8″ |
| Drive Motor | 1 HP, 220V, 1-Phase |
| Net Weight (approx.) | 551 lbs. |
| Gross Weight (approx.) | 683 lbs. |
| Measurement (L x W x H) | 37-3/16″ x 22″ x 72-13/16″ |
Optional Items Available:
- Rip Fence For Straight Repeated Cuttings (Easily Removable For Varied Size)
- Miter Protractor For Angular Cutting
- Electro-Magnetic Switch And Overload Protection
- Groove Table.
Additional Information
| Manufacturer | Birmingham Machine Tools |
|---|---|
| SKU | KB-36B |
| Shipping Method | LTL Freight |
| Weight | 683 lb |
| Dimensions | 38 × 25 × 75 in |
Product Documents
Additional information
| Weight | 683 lbs |
|---|---|
| Dimensions | 38 × 25 × 75 in |
| Brand | Birmingham Machine Tools |
