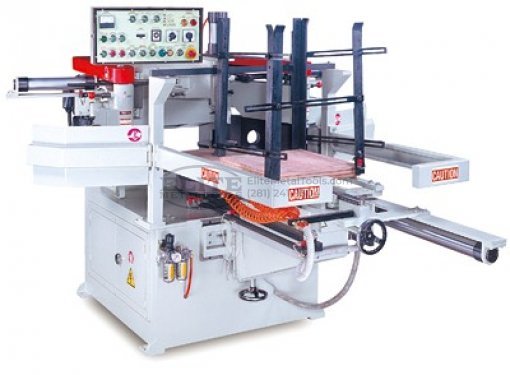

Castaly Industries 22” x 26” Auto Feed Copy Shaper Machine CS-0040DS

Features

• This machine has improved the manual processing of spindle shapers with PC programmable controller. The shaping speed is as high as a CNC copy shaping machine, but the price is much less expensive.
• It not only saves your capital investment, but also reduces your cost of production.
• Use two-head copy shaper with auto feed hopper magazine to ensure max. automatic production with less labor.
• Produce 5 ~ 6 pieces per minute without stopping all day long.
• All operation controls are concentrated in the control box, and the controls are well-arranged on the control panel for easier touch up to operation.
• The easy setup at any position, 2 variable speeds table turning makes it possible for the machine to be operated at any cutting speed, up to maximum.
• The feed rate can be adjusted to give optimum output, according to stock thickness and component shape.
• Unique design of table runs clockwise and counter-clockwise, free from torn grain while cutting different direction of grain in the stock.
• Advanced improvement by timer control of overlap at table rotation eliminates cutter-jointing mark.
• The cutterhead feeding is controlled by pneumatic-hydraulic system making it smoothly apply an even pressure, providing fast and smooth cutting.
• Cutterhead feed is designed automatically to slow down when it approaches the workpiece, ensures no bump occurs and without cutting mark left at the start point; this gives exceptionally smooth finish.
• Attached with standard fittings including centric clamp feed plate, suitable to finish for chair, medium and small desk, etc.
• Finishes the workpiece which has two different profile edges (exp. flat & curve) at different areas in one pass.
• With double spindles & double cutters device, it shapes according to the wood stripes to avoid cracks & fragments, easy for re-sanding.
• Heavy-duty industrial motor for maximum cutting capacity.
• Precision sealed long-life, high-speed bearing for durability usage.
• Heavy sheet metal frames and cast-iron table.
• Suitable for various small workpieces, furniture handles or complicated sharp objects.
• Second head can be used as cutter for fine cutting or brush wheel, profile sanding drum for fine sanding finish.

Specifications

• Max. Shaping Capacity: 6″ ~ 22″ x 26″
• Round Table Dia.: 27″
• Round Table Speed: 1.5 ~ 5 RPM
• Main Spindle Dia.: 1-1/4″
• Cutter Spindle Speed: 9000 RPM
• Shaping Cutter Dia.: 4″ ~ 5-3/4″
• Max. Cutter Length: 5-1/2″
• Follow Wheel Dia.: 4″
• Round Table Turning Motor: 2 HP
• Cutter Motor: 10 HP x 2
• Production Speed: 2 ~ 5 Time/Min.
• N.W. (LBS): 2640 LBS
• G.W. (LBS): 3300 LBS
• Machine Size: 112″ x 77″ x 77″

Options

• CS-SU1 – Setup Kit (Cutter & Template)
• CS-CDRILL – Center Drilling unit

Additional Information

Product Documents

• Download Brochure
