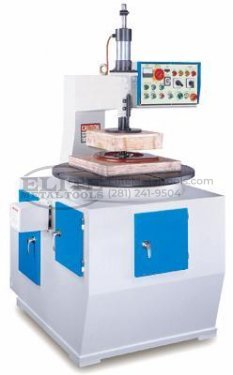

Castaly Industries 23” Inner Copy Shaper Machine with Auto Rotary Table CS-880

Features

• This machine is a break through from traditional manual inner shaping process. Its working speed is as high as 6 pcs per minute.
• It is suitable for inner shaping the square, round irregular work pieces, such as the toilet seat cover, clock shell & photo frame, etc.
• Equipped with PC program control for easy maintenance and durability usage.
• All operation controls are concentrated in the control box, and the controls are well arranged on the control panel for easier touch up to operation.
• The easy set up at any position, 2 variable speeds table turning makes it possible for the machine to be operated at any cutting speed up to maximum.
• The feed rate can be adjusted to give optimum output, according to stock thickness and component shape.
• Unique design of table runs clockwise and counter-clockwise, free from torn grain while cutting different direction of grain in the stock.
• Advanced improvement by timer control of overlap at table rotation, eliminates cutter-jointing mark.
• The spindle can used router bit or shaper cutter for the best cutting choice.
• The cutter head feeding is controlled by pneumatic-hydraulic system makes it smoothly apply an even pressure, providing fast and smooth cutting.
• Cutter head feed is designed automatically slow down when it approaches to the work piece, assures no bump occurs and without cutting mark left at the start point, this gives exceptionally smooth finish.
• Attached with standard fittings, including centric clamp.
• Heavy duty industrial motor for maximum cutting capacity.
• Precision sealed long life, high speed bearing for durability usage.
• Heavy sheet metal frames and cast-iron table.

Specifications

• Shaping Capacity Dia.: 1″ ~ 23″
• Table Outside Dia.: 35″
• Table Inner Dia.: Large 23″ / Small 17″
• Router Bit Chuck: ½”, 5/8″
• Shaper Cutter Spindle Dia.: 1″
• Spindle Length: 3″
• Cutter Diameter: 1/5″ ~ 4″
• Spindle Speed: 9000 ~ 16000 RPM
• Cutter Motor: 7½ HP
• Table Turning Motor: 2 HP
• N.W.: 2464 LBS
• G.W.: 2680 LBS

Options

• CS-SU1 – Setup Kit (Cutter & Template)
• SM-AOFEED – Auto Feed Hopper, Magazine

Additional Information

Product Documents

• Download Brochure
