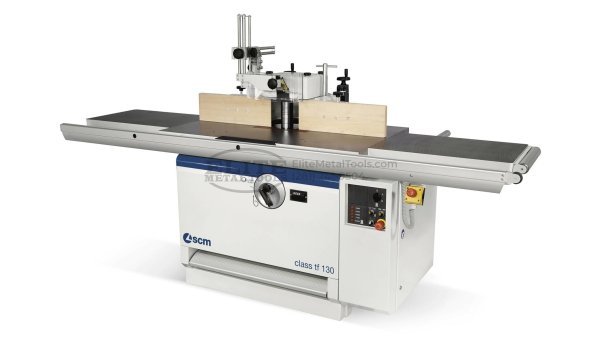

SCM Group 220V Three Phase 5-Speed Fixed Spindle Shaper CLASS TF 130

Features

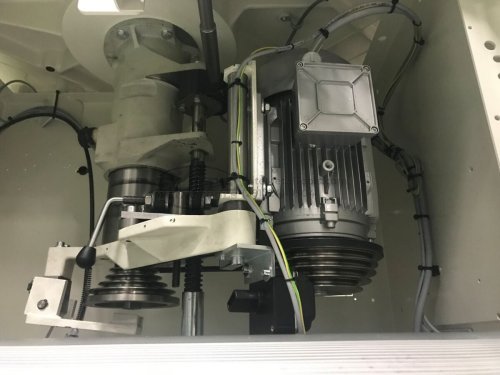

• Spindle moulder unit: maximum stability and rigidity in all working conditions thanks to a large spindle moulder column made entirely of cast iron. The spindle is surrounded by a cast iron “cup” that protects the internal mechanical components from shavings and sawdust

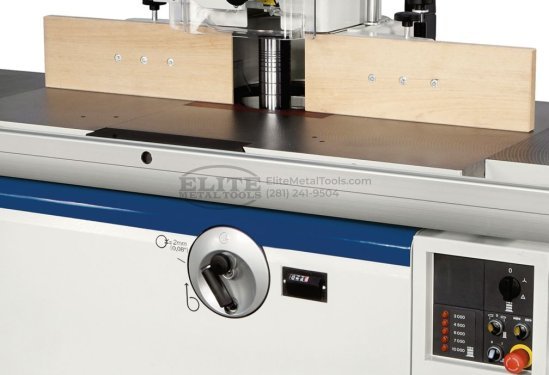

• Precise set up: the operator can easily adjust the spindle position by using the handwheel with mechanical readout positioned in front of the machine
• Maximum set-up speed and ease-of-use: the spindle moulder fence with mechanical programming and digital readouts ensures accuracy to a tenth of a millimeter in positioning the tables so that no more test runs are required to get the desired result
• Versatility and ease of use: take advantage of the numerous options and accessories that can be equipped on the Class TF 130
• Safety/Protections
  • Emergency pushbutton
  • Safety microswitch on motor access door
  • Overload switch protection
  • Auxiliary low voltage circuit (110 volt)
  • Mechanical brake on main motor
  • Foot pedal lock
  • “CSA” rated electrical components including cables
  • Main power switch can be locked in the off position with a padlock

Standard Equipment

• Manual spindle lifting complete with mechanical readout of spindle height
• 5 spindle speeds: 3000 / 4500 / 6000 / 7000 / 10000 rpm
• Reverse spindle rotation with electrical interlocking for reverse operation
• Spindle fence with mechanical adjustment: memory pins for an accurate and repeatable positioning continuous linear adjustment by handwheels accessible from the front of the machine. 250mm max tool diameter
  • Adjustment of entire fence (in respect of tool diameter)
  • Adjustment of infeed fence (thickness to remove)
• (1) MK5 1¼” spindle
• Toolbox: wrenches, allen wrenches, user manual, spare parts catalog

Specifications

• Motor power: 11HP – 8kW
• Worktable dims: 47.19” x 28.69”
• Working length of spindle diameter 1¼”: 7”
• Spindle base projection from table with interch spindle: 3.56”
• Max tool diameter retractable under worktable with rings:12.56” x 3.31”
• Exhaust outlets diameter for spindle hood and machine base: 4.69”
• Nominal extraction air consumption: 986 CFM
• Air exhaust speed: 66 ft/s
• Electrical Requirements: 220V Three Phase 60Hz 25A
• Machine Dims: 69” x 57” x 57”
• Approx Weight: 1,327 lbs

Optional Add-Ons

• “LL” version for profiling
• Carriage on fix table for small tenoning operations
• Additional MK5 spindle
• MK5 right tool taper
• MK5 left tool taper
• “T-Set” rapid tool locking
• Manual feeder support (horizontal/vertical movement)
• Feed 48 feeder
• “FAST” section table
• “FLEX” system
• Upper mobile control panel
• “TL” version for tenoning-profiling
• PRO-10 “TL” version for tenoning-profiling
• “T-Set” rapid tool locking
• 14HP – 11kW motor
• Automatic star-delta start
