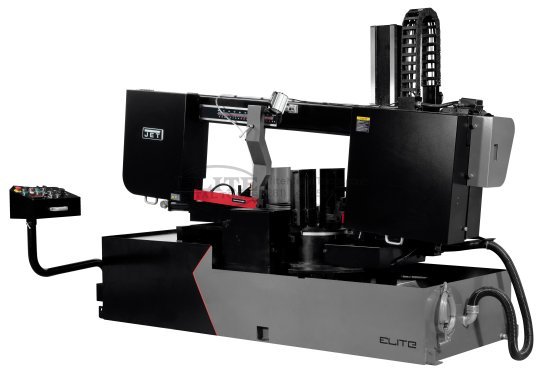

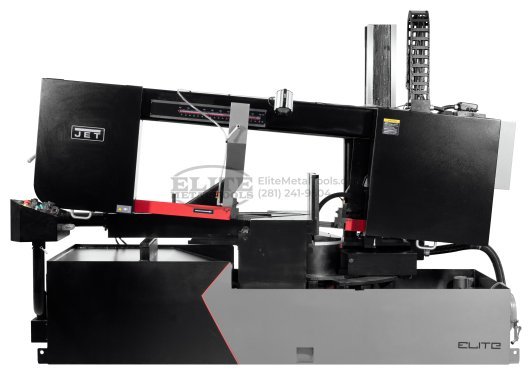

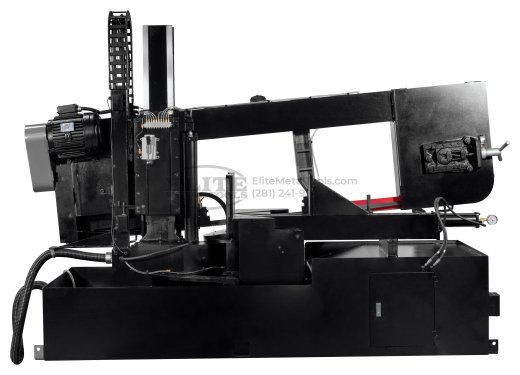

Jet ECB-1833DMEVS-230, 18 x 31″ Semi-Automatic Dual Mitering EVS Bandsaw 230V, 3Ph 891170
$55,791.00
- Electronic variable speed from 50-297 SFPM
- Heavy duty construction reduces vibration and deflection
- Hydraulic assist descent control
- Auto table swivel
- Blade tension gauge helps to ensure the blade is in the correct cutting position
Description
With features unmatched, the JET Dual Mitering , Semi-Automatic, EVS Bandsaw is the perfect solution for cutting structural steel with ease.
- Electronic variable speed from 50-297 SFPM
- Heavy duty construction reduces vibration and deflection
- Hydraulic assist descent control
- Auto table swivel
- Blade tension gauge helps to ensure the blade is in the correct cutting position
- Semi-auto on saw bow lifting and hydraulic vise
- Swing away control box allows Operator to use in any position
| Specification | Value |
|---|---|
| Throat Depth (In.) | 18 |
| Blade Speeds (SFPM) | 50 – 300 |
| Blade Speeds Metal (SFPM) | 50.3 |
| Round at 45 Degrees (In.) | 18 |
| Round at 60 Degrees (In.) | 18 |
| Round at 90 Degrees (In.) | 15 |
| Blade Length (In.) | 240 |
| Rectangle at 45 Degrees (In.) | 18 x 20-13/16 |
| Rectangle at 60 Degrees (In.) | 18 x 14-29/32 |
| Cutting Capacity (W x D) (In.) | 18 x 33 |
| Blade Speed (SFPM) | 150-300 |
| Rectangle at 90 Degrees (In.) | 18 x 31-1/2 |
| Square at 60 Degrees (In.) | 15 x 15 |
| Weight (Lbs.) | 5060 |
| Overall Height (In.) | 82-5/8 |
| Blade Wheel Diameter (In.) | 22-53/64 |
| Electrics | 7-1/2HP, 230V, 3Ph |
| Bed Height (In.) | 33-15/32 |
| Maximum Vise Opening (In.) | 31-1/2 |
| Square at 45 Degrees (In.) | 18 x 18 |
| Square at 90 Degrees (In.) | 18 x 18 |
| Motor (HP) | 7-1/2 |
| Floor Space Required (In.) | 110 x 74 x 82-5/8 |
| Shipping Weight (Lbs.) | 5500 |
| Coolant Pump Motor | 1/8HP, 230V, 3PH |
| Overall Dimensions (L x W x H) (In.) | 110 x 75 x 83 |
| Prewired Voltage (V.) | 230 |
| Drive | EVS |
| Net Weight (Lbs.) | 5060 |
| Gross Weight (Lbs) | 5500 |
| Height | 91.0000 |
| Length | 136.0000 |
| Weight | 5500.0000 |
| Width | 45.0000 |
Additional Information
| Manufacturer | JET |
|---|---|
| SKU | JT9-891170 |
| UPC | 731325806830 |
| Shipping Method | LTL Freight |
| Weight | 5,500 lb |
| Dimensions | 136 × 45 × 91 in |
| Country of Origin | Taiwan |
| Warranty | 1 Year (Parts) |
Product Documents
Additional information
| Weight | 5500 lbs |
|---|---|
| Dimensions | 136 × 45 × 91 in |
| Brand | JET |
| Country of Origin | Taiwan |
| Warranty | 1 Year (Parts) |
