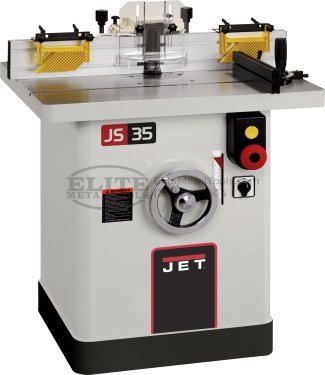

Jet JWS-35X3-1 Shaper 3HP, 1Ph 708323
$4,145.00
- 4″ Dust port built into fence for convenient hookup to any dust collection system
- Extra-large chrome handwheel is conveniently located for fast, easy, and accurate spindle height adjustments

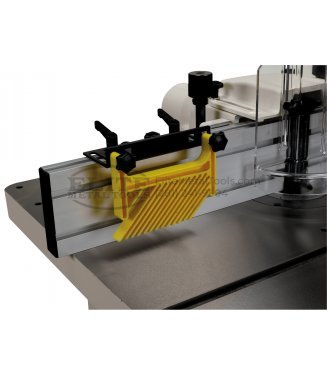

- Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
- Four RPM speeds (4000, 6000, 8000, 10000) let you select the best speed and torque for different cutter diameters
- Large 26-3/4” x 32-1/4” precision-ground cast iron table provides a durable work area and is predrilled for power feeder
Description

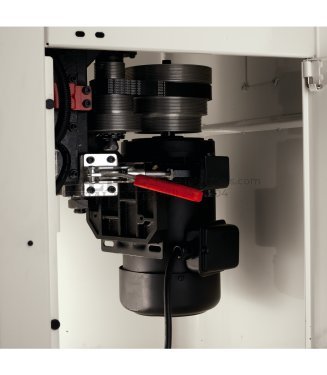

This heavy-duty JET Shaper is available with a powerful 3HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.
- 4″ Dust port built into fence for convenient hookup to any dust collection system
- Extra-large chrome handwheel is conveniently located for fast, easy, and accurate spindle height adjustments
- Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
- Four RPM speeds (4000, 6000, 8000, 10000) let you select the best speed and torque for different cutter diameters
- Large 26-3/4” x 32-1/4” precision-ground cast iron table provides a durable work area and is predrilled for power feeder
- Poly-V-belt transfers maximum power to the spindle
- Powerful 3HP, 1Ph motor with magnetic controls
- Reversible spindle speeds for diverse shaping jobs
- Starting Pins for irregular shaping
- V-belt transfers maximum power to the spindle
| Specification | Value |
|---|---|
| Maximum Spindle Diameter (In.) | 1-1/4 |
| Spindle Travel (In.) | 4 |
| Spindle Size Under Nut (In.) | 4 |
| Table Size (L x W) (In.) | 32-1/4 x 26-3/4 |
| Table Opening Diameter (In.) | 6-19/64 |
| Table Inserts (In.) | 2 |
| Motor Power (HP) | 3 |
| Table Height from Floor (In.) | 33-1/4 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Motor Amps | 14 |
| Height | 41.0000 |
| Length | 30.0000 |
| Weight | 550.0000 |
| Width | 40.0000 |
Additional Information
| Manufacturer | JET |
|---|---|
| SKU | JT9-708323 |
| UPC | 662755988127 |
| Shipping Method | LTL Freight |
| Weight | 550 lb |
| Dimensions | 30 × 40 × 41 in |
| Country of Origin | Taiwan |
Product Documents
Additional information
| Weight | 550 lbs |
|---|---|
| Dimensions | 30 × 40 × 41 in |
| Brand | JET |
| Country of Origin | Taiwan |
