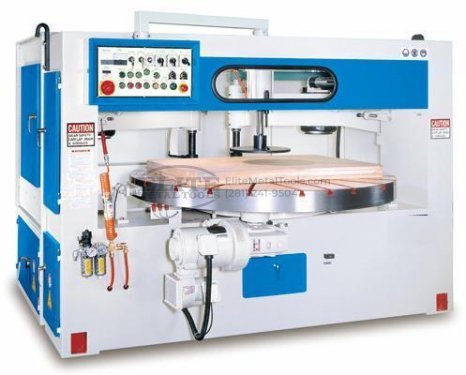

Castaly Industries 100” Two Head Copy Shaper Machine with Rotary Table CS-10002

Features

• All operation controls are concentrated in the control box, and the controls are well arranged on the control panel for easier touch up to operation.
• Equipped with PC program control for easy maintenance and durability usage.
• The easy set up at any position, 2 variable speeds table turning makes it possible for the machine to be operated at any cutting speed up to maximum.
• The variable cutting feed rate can be adjusted to give optimum output, according to stock thickness and component shape.
• Unique design of table runs clockwise and counter-clockwise, free from torn grain while cutting different direction of grain in the stock.
• Advanced improvement by timer control of overlap table rotation to eliminates cutter-jointing mark.
• The cutter head feed is controlled by pneumatic-hydraulic system makes it smoothly apply an even pressure, providing fast and smooth cuter head feed.
• Heavy duty industrial motor for maximum cutting capacity.
• Precision sealed long life, high speed bearing for durability usage.
• Heavy sheet metal frames and cast-iron table.
• Cutter head feed is designed automatically slow down when it approaches to the work piece, assures no bump occurs and without cutting mark left at the start point, this gives exceptionally smooth finish.
• Those models are designed for small to large work pieces shaping & profiling, easy & convenient to operate, most suitable used for the processing of chair foot, chair back, and table top, etc.
• This unit has 2 heads at each side to performs rough & fine cutting or two profile cutting or sanding at same time.
• Also, it can be equipped with auto air-operated toggle clamps to supply for continuous mass production procession.

Specifications

• Shaping Capacity (Round): 24″ ~ 100″
• Max. Shaping Capacity (Rectangle): 89.2″ x 44.6″
• Table Dia.: 72″
• Table Revolving speed (Var.): 0.5 ~ 3 RPM
• Spindle Speed: 9000 RPM
• Spindle Length: 5½”
• Spindle Dia.: 1-1/4″
• Shaping Cutter Dia. (Max.): 6″
• Follow Wheel Dia. (Min.): 2″
• Standard Toggle Clamps: 12 pcs
• Table Turning Motor: 3 HP
• Spindle Motor: 10 HP x 2
• N.W.: 7600 LBS
• G.W.: 9000 LBS

Options

• CS-SU2 – Setup Kit (Cutter & Template)
• CS-CLAMP – Tong Clamp for 62” to 100”
• CS-80SH – Oscillating Sander Head

Additional Information

Product Documents

• Download Brochure
