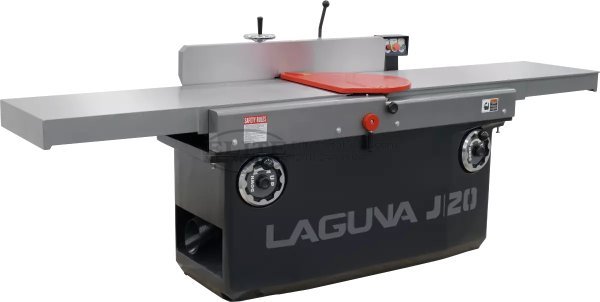

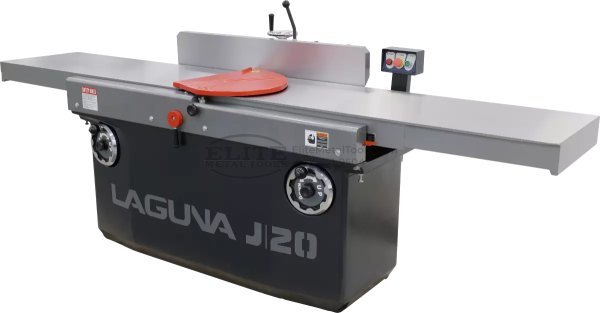

Laguna Tools J|20 220V Three Phase 112” x 20” Industrial Jointer MJ20-5HP-3PH-0800

Description

Laguna’s premier industrial jointer is the J|20, a robust production-level jointer with a generous 20-inch width and table length of over 9 feet. The table support is robust cast iron for minimal vibration and produces clean, glass-like finishes. The J|20 is available with a 5HP motor and uses a 6-row spiral cutting head with a total of 180 knives. The J|20 is the ultimate production-level industrial jointer, perfect for jobs that require large smooth timbers or wide-faced stock.

Features

• 20” Jointer Width
• 112” Table Length
• 31½” Table Height

Specifications

• Table size: 112” x 20”
• Max jointing width: 20”
• Max cutting depth: 0.3”
• Table Height: 31½”
• Fence Angle: 0-45°

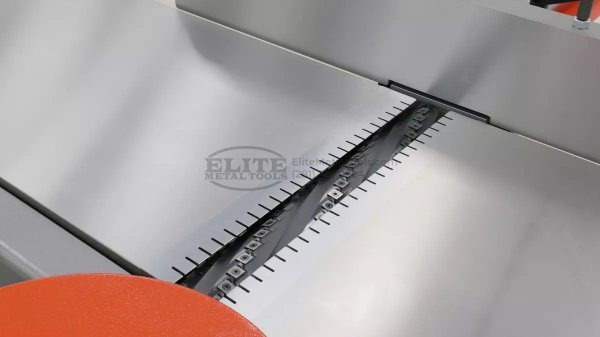

• Cutterhead: 6 Row, 180 Knives
• Knives: 144 qty
• Dust chute diameter: 5”
• Cutterhead speed: 5000 rpm
• Electrical Requirements: 220V Three Phase 5HP
• Machine Dims: 112” x 27” x 32”
• Approx Weight: 1606 lbs

Additional Information

Product Documents

• Download Brochure
