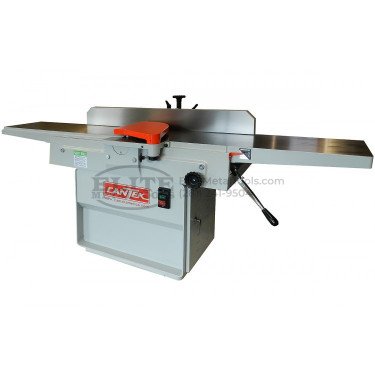

Cantek 7.5 HP Three Phase 16” Spiral Head Jointer J168LH

Features

• Heavy Duty Construction – Solid cast iron table which is precision ground & polished for a smooth and accurate jointing surface.
• Spiral Insert Knife Cutterhead – Equipped with a spiral insert knife cutterhead with 2-sided 30x12x1.5mm replaceable insert knives which provides a superior finish & ultra-quiet operation.
• Table Raising & Lowering Mechanism – The parallelogram design enables the table to travel in the same arc as the cutterhead which maintains a close & uniform distance for a safe operation regardless of the cutting depth.
• Heavy Duty Center Mounted Fence – The large cast-iron fence is center mounted and adjusted in / out by rack & pinion. It can also be tilted with positive stops of 45, 90, 135° & can also be locked at any angle.
• Noise Reduction Table Lips – Both infeed and outfeed tables are equipped with unique noise reduction table lips which are contoured close to the cutterhead for safe and quiet operation. Also equipped with a rabbeting ledge on the infeed table with a Max. Depth of 3/4”

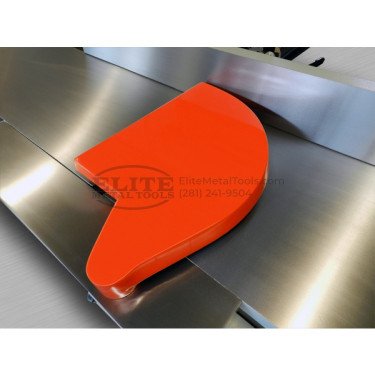

• Safety Guard – The spring-loaded safety guard moves only when the workpiece is being fed. The guard will return to its original position upon completion of the cut ensuring a safe operation.

Other Highlights

• 16” working width
• Long cast iron work tables ensure a sturdy work surface to producing a precision jointed edge
• A spiral insert knife cutterhead ensures a quiet operation while providing a superior finish with long blade life
• Accurate parallelogram design enables table to travel in the same arc as the cutting circle, maintaining close uniform clearance between the table lip and cutterhead for safest operation regardless of cutting depth

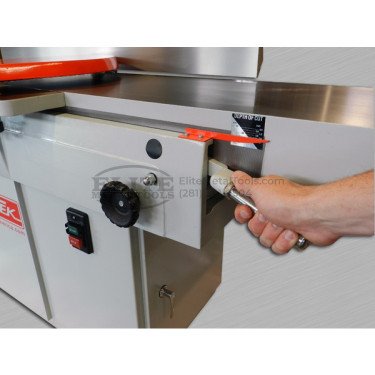

• Convenient handwheels are provided for locking the table(s) in position
• Comes with a 4” dust chute which is guided directly under the cutterhead for superior chip / dust removal
• Equipped with a CSA / UL magnetic switch

Specifications

• Motor: 7.5 HP – 3 Phase
• Max. cutting width: 16″
• Max. depth of cut: 3/4″
• Table size: 16 x 96″ long
• Cutter RPM: 5000 RPM
• Cutting circle: 4 3/32”
• Cutterhead inserts: 30 x 12 x 1.5mm
• Dust extraction: 4” outlet
• Machine dimensions: 97” x 40” x 37”
• Net weight: 990 lbs.
• Shipping dimensions: 99.9” x 28.8” x 38.2”
• Shipping weight: 1210 lbs.
