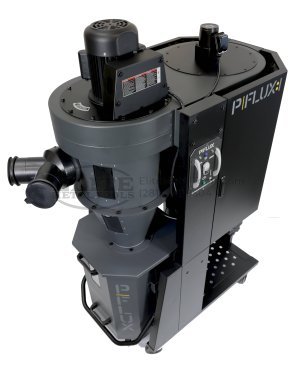

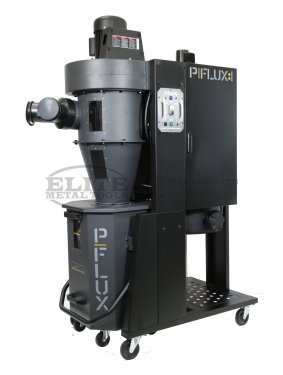

Laguna Tools P|Flux: 1 1.5HP 110V Single Phase Dust Collector MDCPF15110
$3,598.00
- Air Flow: 900 CFM
- Filtering Area: 48.4 sq/ft
- Collection Capacity: 25 Gallon Octagon Drum
- Motor: 1.5 HP, 110 Volt, Single Phase
Description
Description
The P|Flux series gets a host of exciting new upgrades including an auto-cleaning feature standard on all models in this line. The auto-clean conveniently activates every 10 minutes, or you can simply activate from the sleek redesigned remote. Overfilling the drum is a thing of the past, thanks to the super-sized 46 gallon octagonal drum (P|Flux 2 and 3), and a bright LED light illuminating the drum on all P|Flux models. Plus, LED and audio warning lets you know when the drum is full – features that are now standard in this line.
Features
- 1.5 HP Motor
- 1314 CFM Maximum Air Flow
- 25 Gallon Octagon Drum
Specifications
- Motor Specs: 1.5HP
- Electrical Specs: 110V / 60Hz / 1PH / 3450 RPM
- Running AMP: (with 6″ inlet) 18.8A at 110V
- Maximum Air Flow: 1314 CFM (Cubic Feet Per Minute)
- Shop Setting Air Flow*: 900 CFM (Shop Setting Air Flow measured with hoses connected to inlet)
- Max Static Pressure: 10.1″
- Fan Size: 13.5″
- Inlet: One 6″ or Two 4″ Ports
- Auto Clean: 10 min. Interval 10 Seconds F+R
- Remote Control: High Frequency
- Collection Capacity: 25 Gallon Octagon Drum
- Decibel Reading: 70 dB (@9.8ft)
- Assembled Dimensions (L x W x H): 42″ x 25″ x 68″
- Packing Size (L x W x H): 45″ x 28.3″ x 47″ (114.5 x 72 x 119.5 cm)
- Machine Weight: 232 lbs. (105 kg)
- Shipping Weight: 287 lbs. (130 kg)
- Filter Specs
- Filtering Area: 48.4 sq/ft (4.5 sq/m)
- Cartridge Filter**: HEPA, 15.74″ x 19.68″ (40 x 50 cm) x 1pc
- ** The non-stick PTFE membrane has some disintegration after 200,000 cycles at the area where the cleaning paddles/arms touch the filter media. This does not largely affect the filtration efficiency. The HEPA filter media used on Laguna Cyclones are independently tested by an accredited 3rd party (TTRI). Designed with wide-spaced pleating to maintain optimum performance throughout filter lifespan.
Available Options
- 220V Single Phase
- Flux Remote Control
- Cyclones Caster Wheel (w/Brake)
- Cyclone Caster Wheel (No Brake)
- Drum Bags for 2022 Fluxes
Additional Information
| Manufacturer | Laguna Tools |
|---|---|
| SKU | MDCPF15110 |
| UPC | 642872599222 |
| Shipping Method | LTL Freight |
| Weight | 287 lb |
| Dimensions | 45 × 28.3 × 47 in |
| Country of Origin | Taiwan |
| Warranty | 2 Years (Parts) |
| Warranty Details | Must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. |
Product Documents
Additional information
| Weight | 287 lbs |
|---|---|
| Dimensions | 45 × 28.3 × 47 in |
| Brand | Laguna Tools |
| Country of Origin | Taiwan |
| Warranty | 2 Years (Parts) |
