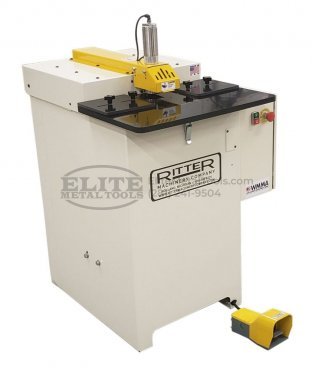

Ritter Machinery 110V Single Phase 6° Low Angle Pocket Cutter R2061
$7,495.00
- Router: 24,500 RPM, 11 A, 1.75 HP
- Drill: 31,000 RPM, 4.5 A, 7/8 HP
- Electrical: 110V 15A
- Air: 2 CFM at 80 – 100 PSI
Description
Description
The R2061 is used for routing a single pocket hole for cabinet face frame assembly. It is part of the R200 assembly system that includes the R200E/A and is sold separately.
Features
- 6° Low angle
- PLC controlled cycle
- Foot pedal operated
- Adjustable Material Stops
- Up to 2″ thick material
- Cycle Time: 1.75 – 2 Sec
- Tooling Included
Specifications
- Router Bit: 3/8” Solid Carbide, Rough Mill
- Drill Bit: 9/64” Brad and Spur Tin-Coated Bit
- Router: 24,500 RPM, 11 A, 1.75 HP
- Drill: 31,000 RPM, 4.5 A, 7/8 HP
- Electrical: 110V 15A
- Air: 2 CFM at 80 – 100 PSI
- Work height: 36″
- Footprint: 27.75″ x 20.5″
- Table Area: 15.75″ x 23.75″
- Dust Port: 4″
- Shipping Weight: 300 lbs.
- Shipping Dimensions: 38″ x 25″
Options
- 48″ Wide Table
Additional Information
| Manufacturer | Ritter Machinery |
|---|---|
| SKU | R2061 |
| Shipping Method | LTL Freight |
| Weight | 350 lb |
| Dimensions | 45 × 41 × 56 in |
| Country of Origin | United States of America |
Product Documents
Product Videos
Additional information
| Weight | 350 lbs |
|---|---|
| Dimensions | 45 × 41 × 56 in |
| Brand | Ritter Machinery |
| Country of Origin | United States of America |
