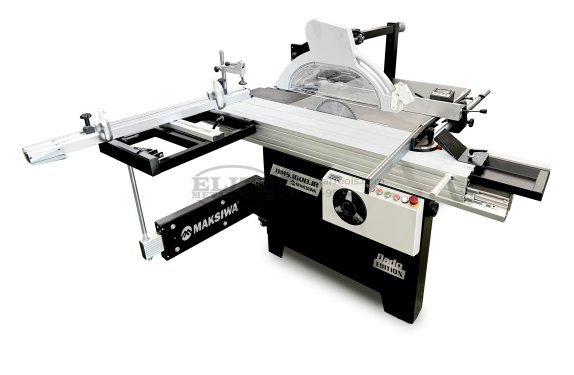

Maksiwa 5 HP 220V Single Phase Compact Sliding Panel Saw with DADO Capability BMS.1600.IR

Description

The Maksiwa BMS.1600.IR Dado Edition is a compact 5’ sliding panel saw designed for precision, power, and efficiency in small to mid-sized workshops. Upgraded with dado blade stack compatibility, it allows clean, chip-free joinery cuts up to 1-1/4″ using an 8″ blade. Quick transitions between standard and dado blades maximize productivity, while its 5HP 1 Phase motor ensures smooth, consistent cutting.

Ideal for cabinetry, furniture, and custom wood projects, this machine delivers versatility without sacrificing space.

Standard Features

• 5 HP 1 Phase 220V
• 1 HP scoring motor
• Cuts up to 5’ long sheets
• Dado blade stack compatible

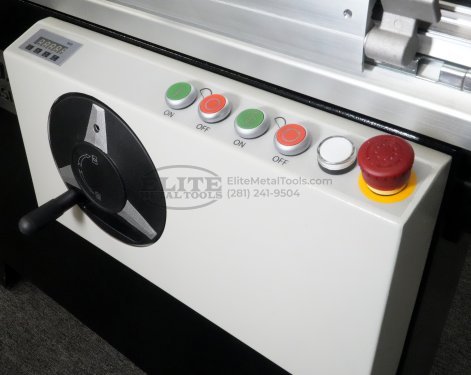

• Digital rip fence readout
• Dual blade covers
• Integrated dust collection
• Digital angle display (90º to 45º)
• One set of blades included (Main 12″ and Scoring)

Specifications

• Electrical Specs: 1 Phase 220V 30 Amp 60Hz
• Main Motor: 5 HP 4000 RPM 3.7Kw
• Main Blade Max Diameter: 12″ | 305mm
• Main Blade Arbor: 1-3/16″ | 30mm
• Main Blade Max Cutting Height at 90º: 3-1/2″
• Main Blade Max Cutting Height at 45º: 2-1/2″
• Main Blade Max Tilt: 45º
• Dado Width Capacity: 1-1/4″
• Max Dado Blade Diameter: 8″
• Dado Blade Arbor: 1-3/16″ | 30mm
• Scoring Motor: 1 HP 8000 RPM .74Kw
• Scoring Blade: 4-3/4″ | 120mm
• Scoring Blade Arbor: 25/32″ | 20mm
• Scoring Blade Type: Conical
• Max Crosscut Capacity: 35-1/2″ | 900mm
• Max Ripping Capacity: 63″
• Crosscut Fence Max: Closed: 48″ | Open: 80″
• Machine Dimension: 79″ x 115″ x 66″
• Sliding Table Dimension: 63″ x 12″
• Sliding Table Mechanism: Roller Bearings
• Cast Iron Table Dimension: 32-1/2″ x 21″ x 35-1/2″
• Dust Collection Port: 4″
• Minimum Dust Collection Requirements: 1000 CFM
• Weight: 1000 lbs
• Warranty: 2 Years
