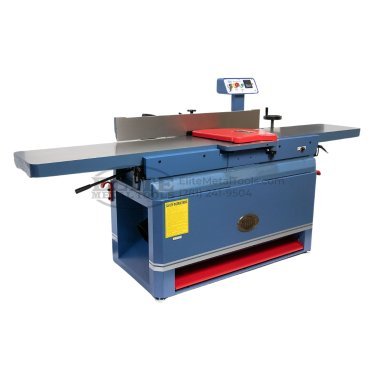

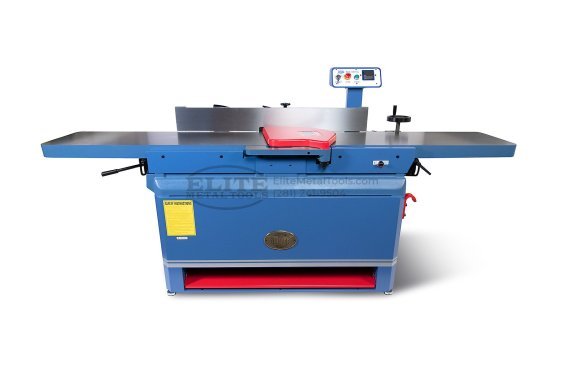

Oliver Machinery 16” 230V Three Phase Parallelogram Jointer with HCX Helical Cutterhead 4275C.753T

Features

• Extra-long precision ground tables provide a stable work surface
• Parallelogram design provides smooth accurate cuts
• Massive cast iron frame offers stable table support
• Fully enclosed cabinet with 6” port for superior dust management
• Oliver HCX Helical cutterhead with premium carbide inserts
• 4-sided cutting inserts are indexed and easy to replace
• Elevated control panel with key lock and emergency off switch
• Wixey DRO shows table infeed table movement for precision cuts
• Foot activated emergency power shutoff
• Handwheel controlled infeed table allows for quick adjustment and auto-lock during operation
• Lever controlled outfeed table allows easy adjustment
• Long solid cast iron fence features positive stops at 45° and 90°
• Quick slide and lock fence adjustment
• Easy to read depth of cut gauge
• Powerful 5HP 1Ph motor
• Ploy V-belt drive efficiently delivers power to the cutter head
• CSA listed

Specifications

• Infeed table travel: ¾”
• Cutterhead speed: 5,500 rpm
• Number of knives (helical): 76 inserts
• Max depth of cut: 1/8”
• Rabbeting capacity: ¾”
• Dust port diameter: 6”
• Table dimensions: 16” x 100”
• Table height: 34¾”
• Fence dimensions (LxW): 47” x 6”
• Fence tilts: 45°
• Positive stops: 90° and 45°
• Motor: 230V / Three Phase / 7.5HP
• Overall dims (LxWxH): 100” x 40” x 41”
• Net weight: 1,020 lbs
• Gross weight: 1,320 lbs

Optional Add-Ons

• 460V motor available
• 4-sided HCX inserts
• Powerfeed mounting

*Commercial location delivery only – forklift w/extra long forks required to unload*

Additional Information

Product Documents

• Download Brochure
