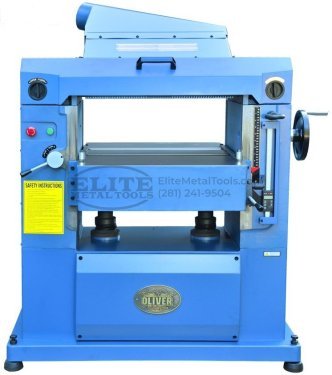

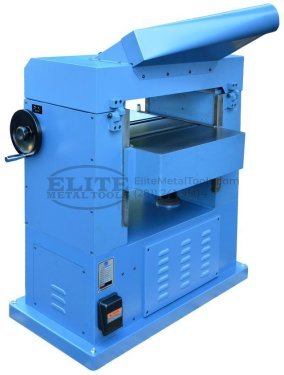

Oliver Machinery 220V Three Phase 22” Planer with HCX Helical Cutterhead 4455.103T

Features

• Massive cast iron construction throughout
• Polished built-in table roller assists movement of rough stock

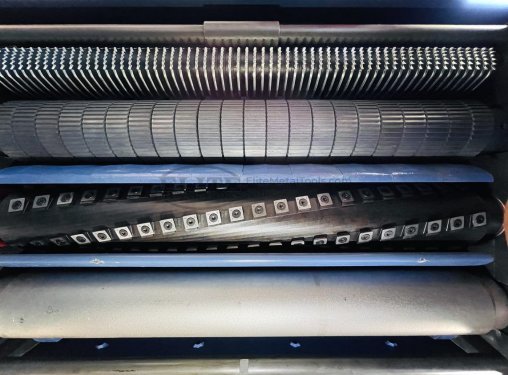

• Oliver HCX Helical cutterhead with premium carbide, indexed inserts
• Segmented infeed roller and sectional chip breaker easily handle rough stock
• 2-speed gear box provides the perfect feed rate
• Magnetic controls with emergency off switch for safer operation
• Digital readout allows precise thickness settings
• Hinged access to cutter head and feed rollers for quick set-up
• Easy access to motor, drive train, and gear box assist in maintenance and adjustment
• 5” dust chute easily handles chip removal
• 3 V-belt drive smoothly transfers power to drive train and cutter head
• Powerful TEFC motor available in three phase

Specifications

• Cutterhead: Oliver HCX Helical
• Max stock width: 22”
• Max stock thickness: 9”
• Min stock thickness: 1/8”
• Min stock length: 10”
• Dust port diameter: 5”
• Min CFM required: 900 CFM
• Infeed roller diameter: 3”
• Outfeed roller diameter: 3-5/16”
• Feed speeds: 20 and 30 FPM
• Bed rollers: 2, adjustable
• Table size: 23¾” x 32¼”
• Cutterhead diameter: 3”
• Cutterhead speed: 5,000 rpm
• Number of knives: 156 inserts
• Footprint: 44” x 22”
• Table support: 2-column
• Electrical Requirements: 220V Three Phase 10HP 26A
• Machine Dims: 45” x 32” x 50”
• Approx Weight: 1,340 lbs

Optional Add-Ons

• Other voltages available (please contact a sales rep for more info)
