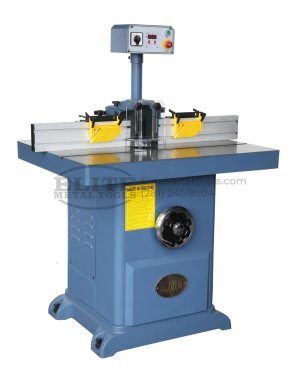

Oliver Machinery 7.5HP Three Phase Shaper 4705.002

Features

• Massive cast iron precision ground table provides a solid work surface.
• Table features pre-drilled and threaded holes for power feeder.
• Cast iron base provides a steady platform.
• Table features pre-drilled and threaded holes for optional power feeder.
• 3/4” and 1-1/4” interchangeable spindles are included for added versatility.
• Three spindle speeds allow more choices to produce a better finish.
• Reversing spindle gives more options for each set-up.
• Innovative dovetail design accurately raises and lowers the spindle.
• Fence is independent and features micro adjustments for quick set-up.

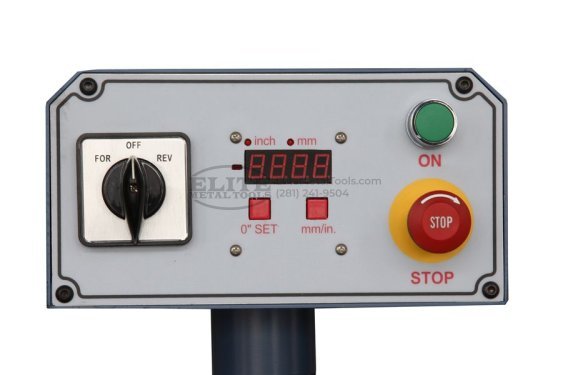

• Top mounted control panel includes a digital readout for spindle height.
• Large hand wheel for quick spindle height adjustment.
• Miter gauge included.
• Magnetic controls with emergency off switch for safer operation.
• Powerful TEFC motor available in three-phase.

Specifications

• Model Number: 4705
• Stock No. (7.5HP, 3Ph): 4705.002
• Spindle Speeds: 5,000, 7,000, 10,000 RPM
• Maximum Tool Diameter: 7” Below Table, 8” Above Table

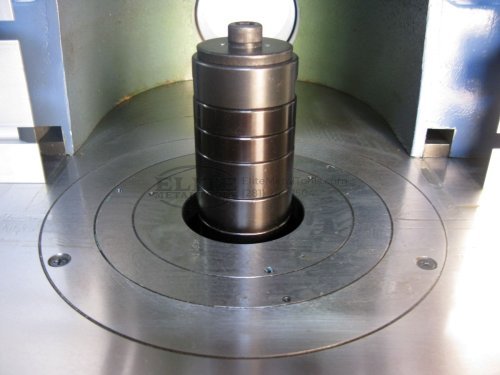

• Spindle Diameter: 1-1/4” and 3/4” Interchangeable
• Vertical Spindle Travel: 4″
• Spindle Direction: Reversible
• Table Height: 36-1/2”
• T-Slot: 3/4” x 3/8”
• Dust Port Diameter: 4”
• Minimum CFM: 800
• Footprint: 28-1/2”L x 24-3/4”W
• Table Dimensions: 39”L x 31-1/2”W
• Motor 3Ph: 7.5HP, 220/440V*, Prewired 220V (16.8/8.4 Amp) *440V available at additional cost
• Net Weight: 660 lbs.
• Gross Weight: 800 lbs.

Options

• 1/2″ Spindle for Models 4705 & 10047 Shaper – Model 10047
• 3/4″ Spindle for Models 4705 & 10047 Shaper – Model 10047
• 1″ Spindle for Model 4705 Shaper – Model 4705
• 1/4″ Collet for Models 4705 & 10047 Shaper – Model 4705
• 1/2″ Collet for Models 4705 & 10047 Shaper – Model 4705
• 1-1/4″ Spindle for Model 4705 Shaper – Model 4705
