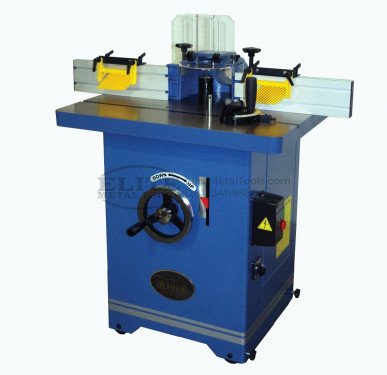

Oliver Machinery 5HP Single Phase Shaper 10047

Features

• Large cast iron table is precision ground table to provide a solid work surface.
• Table features pre-drilled and threaded holes for optional power feeder.
• Full cabinet stand includes wheels and locks.
• 1-1/4” interchangeable spindle included; other optional sizes available.
• Optional router bit collets available.
• Four spindle speeds for versatility
• Belt changes are quick and convenient with unique tensioner.
• Poly V-belt drive for smoother operation.
• Spindle reverses for more options with each set-up.
• Four inches of spindle travel allows more set-up options.
• Starting pin for irregular shapes included.

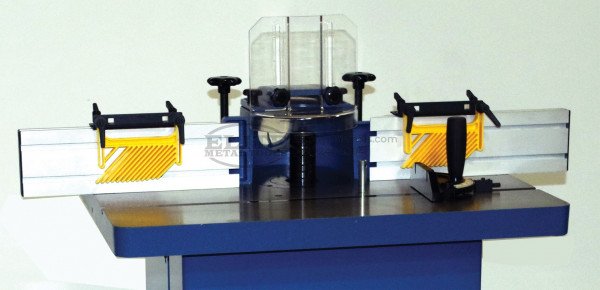

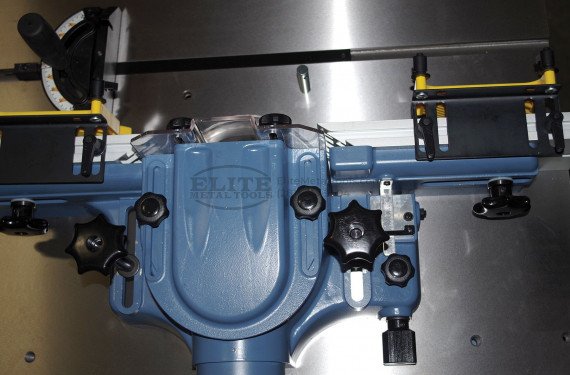

• Fence is independent and includes micro adjustments.
• Adjustable hold downs add to a safer operation.
• Extra-large handwheel for easy and quick height adjustment.
• Miter gauge included.
• Magnetic controls for added safety.
• Powerful 5HP TEFC motor

Specifications

• Model Number: 10047
• Stock No. (5HP, 1Ph): 4705.002
• Spindle Speeds: 4,000, 6,000, 8,000, 10,000 RPM
• Spindle Diameter: 1-1/4”
• Vertical Spindle Travel: 4″
• Spindle Direction: Reversible
• Under Nut Capacity: 4” with 1-1/4” Spindle
• Table Opening: 6-1/4″
• Large Insert Opening: 4-5/16”
• Small Insert Opening: 2-1/2”
• Table Height: 34-3/8”
• Table Size: 32” x 26”
• T-Slot: 3/4” x 3/8”
• Fence Size (2): 4-13/16” x 16”
• Dust Port Diameter: 4″
• Minimum CFM: 800
• Table Dimensions: 40” x 27”
• Motor: 1Ph 5HP, 220V only (18 Amp)
• Net Weight: 473 lbs.
• Gross Weight: 550 lbs.
