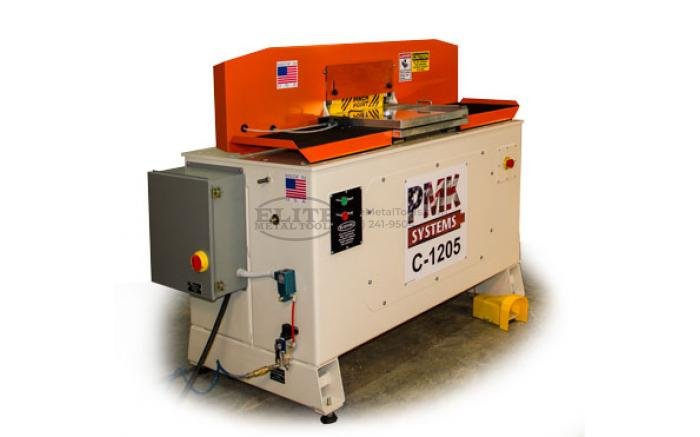

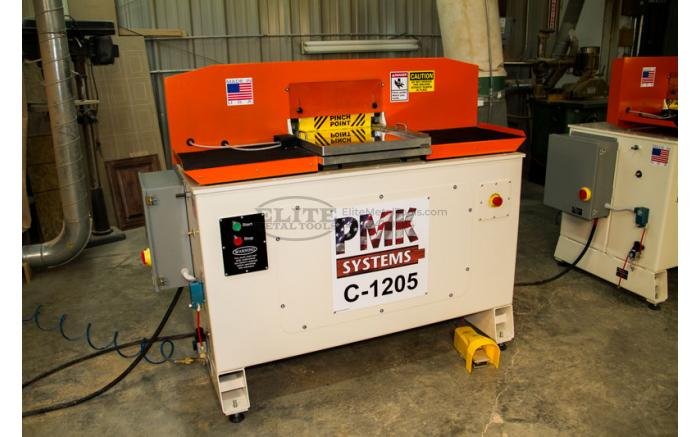

PMK Systems Coping / End-Matching Machine Standard Version C-1205

Description

For customers who need larger capacity, the C-1205 is the solution. The C-1205 is the most versatile coping and end-matching machine, used by architectural millworks for doing wide plank flooring, re-claimed lumber and interior and exterior doors. The C-1205 is used for manufacturing products 3/4 inch thick and larger for residential and commercial customers. PMK Machines are now being used to manufacture plastic component parts also.

Features and Specifications

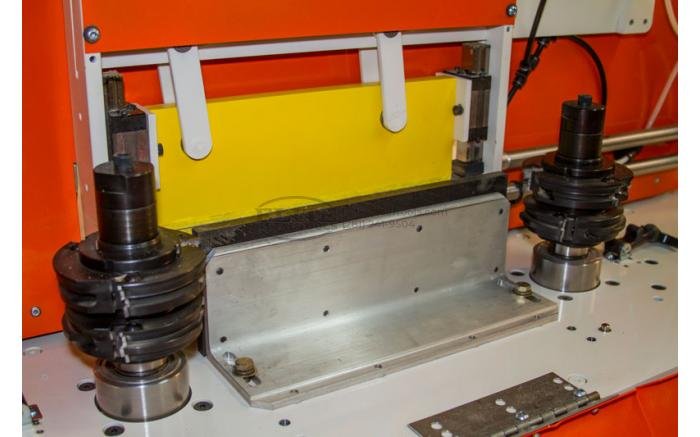

• (2) Counter rotating spindles, both spindles 1 ¼” diameter – rotating at 7000 RPM
• 60 seconds or less tooling change capability
• 7 ½ HP, 3 Phase. 230/460 volt motor
• Unlimited Length of Part
• The C-1205 has the capacity to stack tooling (maximum two cutters per spindle)
• Max part size 2 ” thick, 13 1/2 “ wide
• Small footprint – 52” wide x 39” deep x 42” height
• Machine weight 1,352 lbs (+/-)

Additional Information

Product Documents

• Download Brochure

Product Videos

• Product video 1
