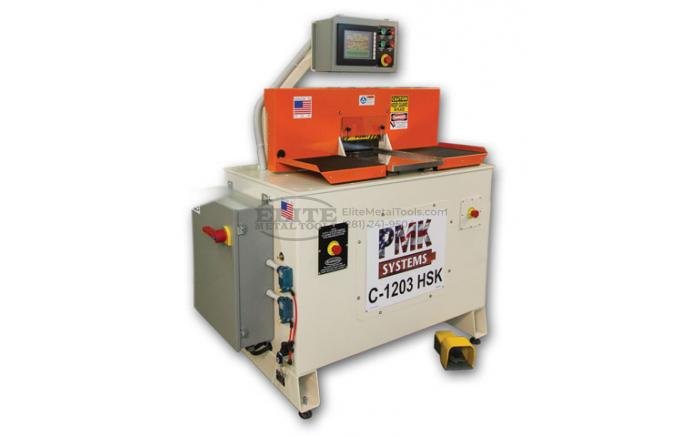

PMK Systems Coping / End-Matching Machine with Quick Change Spindles and 8” Touch Screen Monitor C-1203 PLC / HSK

Description

For the professional woodworker who puts quality first and wants the ability to do production. The C-1203 HSK Machine is used by cabinet door manufacturers who have 10 or more different profiles. Having the ability to be able to change tooling quickly is a must. With PMK’s system you can change your tooling in 30 seconds or less.

Features and Specifications

• Quick change spindles
• 8″ touch screen monitor
• 30 seconds or less tooling change capability
• Machine does a self-diagnosis of itself at start up
• (2) HSK Direct Drive spindles, 1 1/4″ Diameter, rotating 6,000-9,000 RPM, controlled by PLC & Touch screen monitor
• (2) 7 ½ HP, 3 Phase, 230/460 volt motors (please specify your voltage)
• Tool holder / Milling arbor 1.25″
• Comes with 4 HSK 63F tool holders
• Minimum part size is 3” long
• Max depth of cut is 3/4” depending on profile and density of the wood
• Length of spindle 55mm, 2.165″
• Unlimited Length of Part
• Small footprint – 60″ wide x 32″ deep x 64″ high
• Machine weight 1,469 lbs. (+/-)
