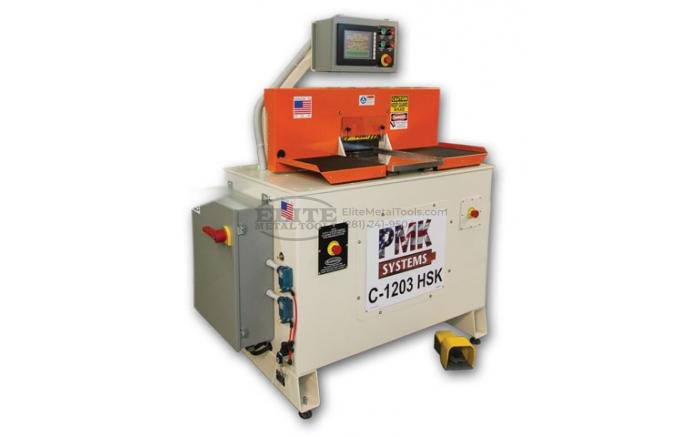

PMK Systems Coping / End-matching Machine with 10” Touch Screen and Direct Drive Spindles C-1203 HSK-SERVO

Description

The HSK/SERVO Machine is our most advanced and innovative coping and end-matching machine manufactured by PMK. THE HSK-SERVO IS RELIABLE, HEAVY DUTY, TESTED & PROVEN. A PMK patented design provides chip-free coping or end-matching of squares or profiled parts without the need of a back-up piece or chip-breaker. Powered by two 7.5 hp motors and direct drive spindles rotating from 6,000 to 9,000 rpm (variable speed) controlled with PLC & monitor. The C-1203 has a small foot print. Features include THK style rails for guidance of carriage stroke and a hold-down clamp. The side pressure clamp ensures proper alignment with fence. The servo drives allow you to raise & lower the spindles and move the back fence in and out for the proper depth of cut.

Features and Specifications

• 2 (two) 7.5 hp motors – 230/460 volts (please specify your voltage).
• Direct drive spindles
• Up to 200 pre-programmable setting for proper configuration of the tooling and back fence.
• Servo drives on both spindles allow for proper location to tooling (Maximum 4.5-inch movement up and down of spindle).
• Servo drive to adjust back fence (2-inch movement in & out for proper location for different tooling dia).
• PLC Micro Processor
• Touch Screen Monitor
• This machine allows you to stack tooling.
• THK style rails for guidance of carriage stroke.

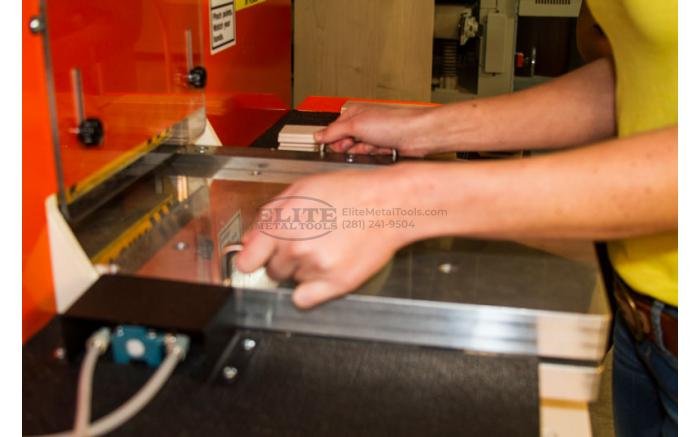

• Side pressure clamp insures proper alignment with fence.
• Cycle time adjustable from 5 to 10 seconds.
