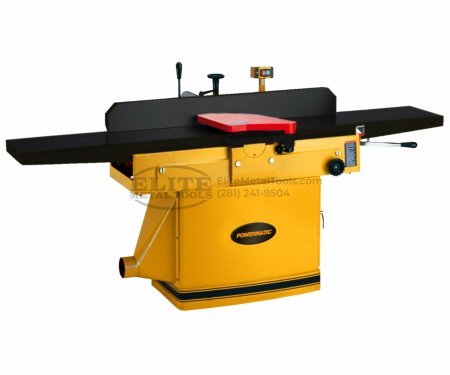

Powermatic 1285HHT 12” 230V Three Phase Parallelogram Jointer with ArmorGlide & Helical Cutterhead PM1-1791308T

Description

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic 1285T, 12-Inch Jointer offers big capacity and performance in a machine that is loaded with features. A large center-mounted fence assembly adjusts easily by a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. This model features a helical cutterhead.

Features

• ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
• Helical cutterhead features 42 two-sided carbide inserts for fast knife changes with no adjustments and a quiet, clean cut
• Large 12″ x 84″ precision ground cast iron table surface for heavy-duty work

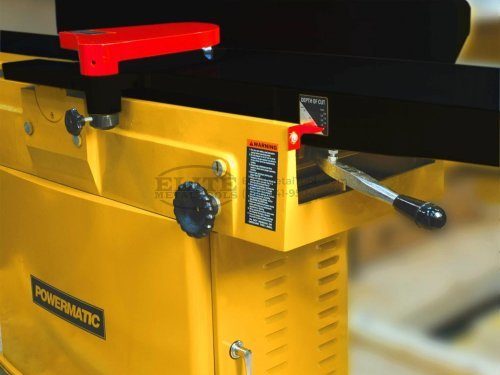

• Parallelogram design ensures close table-to-cutterhead proximity and fast depth of cut adjustments
• Rack and pinion adjustable cast iron fence assembly allows for smooth fence positioning without play
• Table “lips” on both sides of cutterhead aid in noise reduction

NOTE: The recommended max cutting depth for non-rabbeting cuts is 1/8”. The max cutting depth for rabbeting cuts is 1/2″ as the manual has always stated.

Specifications

• Stock Number: PM1-1791308T
• Cutterhead Speed (RPM): 5000
• Cutting Capacity (W x D) (In.): 11-3/4 x 3/4
• Dust Collection Minimum CFM Required (CFM): 800
• Dust Port Outside Diameter (In.): 4
• Model Number: 1285T
• Motor Amps: 6.5
• Motor Power (HP): 3
• Motor Voltage (V.): 230
• Number of Knives: 44
• Prewired Voltage (V.): 230
• Prop 65: Cancer and Reproductive Harm
• Max.Rabbeting Capacity (In.): 3/4″
• Type of Cutterhead: Helical Head
• Machine Weight: 762 lbs
• Machine Dimensions: 84 x 38 x 44
