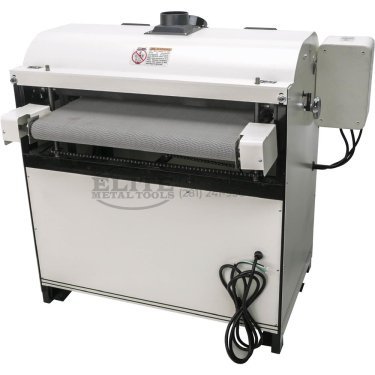

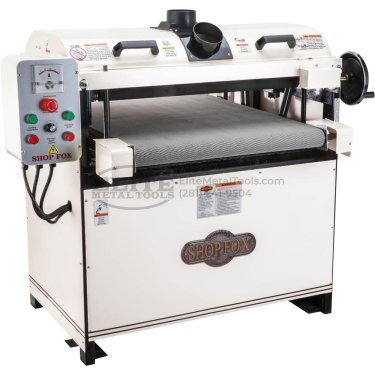

Shop Fox 5 HP 220V Single Phase 26″ Drum Sander W1678

Description

Whether quickly sanding large quantities of panel assemblies or achieving “tear-out” free finishes on figured wood, the Model W1678 performs like a champ in even the most demanding shops. At a full 26″ wide, this Dual Drum Sander can be fitted with two different grits, allowing both rough and finish sanding in one pass. Push aside those old handheld sanders and make room for this one!

Features

• Easy Access Control Panel
• External Micro‐Adjustment on Outfeed Drum
• Variable Speed Conveyor
• Industrial Rubber Conveyor Belt Similar to Wide Belt Sanders
• Amp/Load Meter
• Computer Balanced Drums
• Hook and Loop Sanding Belt Attachment

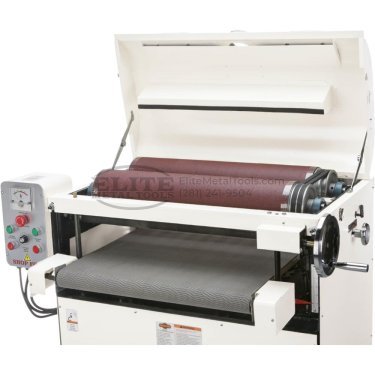

• Dual Sanding Drums
• Four Leadscrew Table Lifting and Lowering System
• Powder-Coated Finish
• All Ball-Bearing Construction

Specifications

• Sanding Motor: 5 HP, 220V, Single Phase
• Full‐Load Current Rating: 27A
• Minimum Circuit Size: 30A
• Connection Type: Cord & Plug
• Power Cord Included: Yes
• Power Cord Length: 14 ft.
• Power Cord Gauge: 10 AWG
• Plug Included: No
• Recommended Plug Type: L6‐30
• Switch Type: Control Panel w/Magnetic Switch Protection
• Amps: 25A
• Speed: 3450 RPM
• Type: TEFC Capacitor‐Start Induction
• Power Transfer: Twin V‐Belt
• Bearings: Sealed & Permanently Lubricated
• Centrifugal Switch/Contacts Type: External
• Conveyor Motor: 1/3 HP, 60V DC, 2A
• Conveyor Motor Speed: 0-60 RPM
• Type: Universal
• Power Transfer: Chain
• Bearings: Sealed & Permanently Lubricated
• Number of Sanding Heads: 2
• Max. Stock Dimensions: 26″ x 4-1/4″
• Min. Stock Width: 2″
• Max. Board Thickness: 3‐3/4″
• Min. Board Thickness: 1/8″
• Min. Board Length: 9″
• Drum Surface Speed: 2300 FPM
• Feed Rates: Variable (0–20 FPM)
• Sandpaper Length: 195″
• Sandpaper Width: 3″
• Conveyor Table Size: 26-1/8″ x 30-1/4″
• Sanding Drums: Two 6″ x 27-3/4″, Aluminum
• Dust Ports: (2) 4″
• Approximate Shipping Weight: 546 Lbs.

Optional Accessories

• D3162 — 3″ x 50′ 60 grit Aluminum Oxide Sanding Roll
• D3546 — 3″ x 50′ 80 grit Aluminum Oxide Sanding Roll
• D3163 — 3″ x 50′ 100 grit Aluminum Oxide Sanding Roll
• D3547 — 3″ x 50′ 120 grit Aluminum Oxide Sanding Roll
• D3164 — 3″ x 50′ 150 grit Aluminum Oxide Sanding Roll
• W1304 — Pro-Stik 1-3/8″ x 4-1/4″ Abrasive Belt/Disk Cleaner
• W1305 — Pro-Stik 1-3/8″ x 8-1/2″ Abrasive Belt/Disk Cleaner
• W1306 — Pro-Stik 1-1/2″ x 8-1/2″ Abrasive Belt/Disk Cleaner
• W1307 — Pro-Stik 2″ x 2″ x 12″ Abrasive Belt/Disk Cleaner
• W1308 — Pro-Stik 4″ Abrasive Belt/Disk Cleaner with Handle
• D3378 — Pro-Stik 12″ x 15″ x 3/4″ Belt Cleaner
• D3003 — Pro-Stik 15″ x 20″ Cleaning Pad
• D4105 — 8″ Digital Caliper-Large LCD
• D4112 — Fractional Digital Caliper 6″
• D4130 — 8″ Decimal / Fractional Digital Caliper
• D2058A — Adjustable Mobile Base – Extra Heavy-Duty
• D2246A — 36″ Extension Bars for D2058A Mobile Base
