Rikon Tools 18” 4 HP Professional Bandsaw with Toolless Guides and Quick Adjust Drift Fence 10-347

Description

The 18” Bandsaw #10-347 has one of the most powerful motors in the line, 4HP with 19″ of re-saw capacity, which makes it ideal for woodworkers doing a lot of heavy re-saw work. Professional features include patient pending spring loaded tool-less guide system, massive cast iron table with quick adjust trunnion system, substantial quick adjust 6” tall rip fence system, key activated safety on/off switch, micro safety on/off switch activated door & foot brake. Under the top door blade tension release levers with blade tension hand wheel are easy to access from the front of the saw.

Features

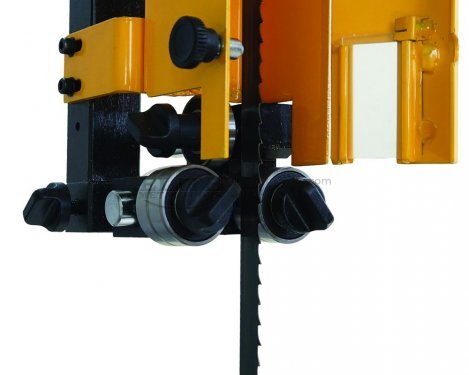

• Patented Spring-Loaded Tool-less Guide System

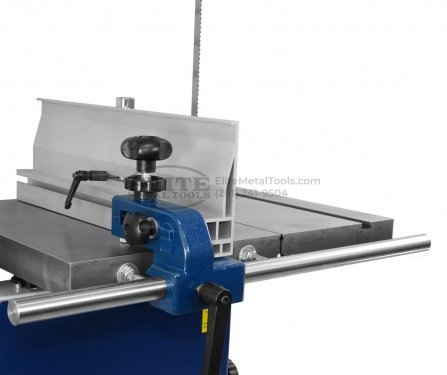

• Patented Quick Adjust 6″ Tall Rip Fence System

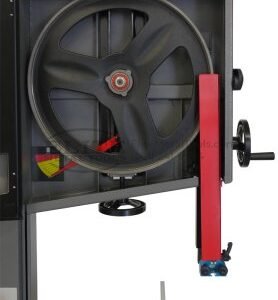

• Cast Iron Wheels
• Quick Adjust Trunnion System
• Foot Brake with Micro-switch

Specifications

• Motor
  • Horsepower: 4 HP
  • Amps: 16
  • Volts: 220V, 60Hz, 1Ph
  • Blade Speed: 4,920 FT/MIN
• Cutting Capacity
  • Height: 19”
  • Width: 17-1/2”
• Blade (Includes 162” x 3/4” x 4 TPI, Reg.)
  • Width: 1/4” – 1-3/8”
  • Length: 162”
• Table
  • Size: 25” x 19”
  • Left Tilt: -5°
  • Right Tilt: 45°
  • Miter Gauge “T” Slot: (1) 3/4” x 3/8”
  • Height to Floor: 33-1/2”
  • Fence Size: 18-3/4” x 1-3/4” x 6”
• Overall
  • Height: 84”
  • Width: 39”
  • Depth: 30”
  • Base Size: 29-15/16” x 18-1/8” x 2-7/16”
  • Dust Port: 2@4”
  • Net Weight: 498 lbs.
  • Shipping Weight: 536 lbs.
  • Shipping Carton: 35-1/4” x 25” x 84-1/4”
  • Warranty: 5 Years

Additional Information

Product Documents

• Download Brochure
• Download Manual
