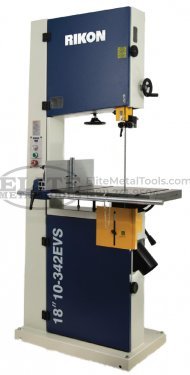

Rikon Tools 18” Electronic Variable Speed Bandsaw 10-342EVS

Description

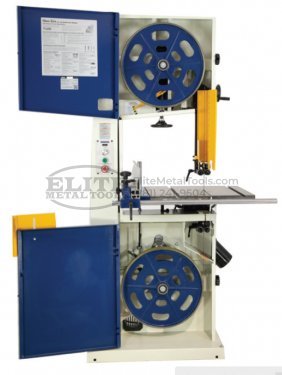

The Rikon 18” bandsaw 10-342EVS is a variable speed model with many Patented features that professionals will enjoy – including spring-loaded tool-less blade guides, quick-adjust fence system and quick-lock trunnion table angling system, plus, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window. 2-1/2HP variable speed motor provides ample power and for most every work encountered. Pre-lubricated, sealed thrust and side ball bearing guides give smooth blade support during difficult cuts. Includes 6” tall rip fence with re-saw bar.

Features

• Variable Blade Speeds Settings 82 to 3,280ft/Min
• 2-1/2HP Motor is Computer Monitored for Continuous Power and Torque
• Digital Readout for Viewing Blade Speed
• Resaw Capacity 13”
• Patented – Spring Loaded Tool-Less Guide System

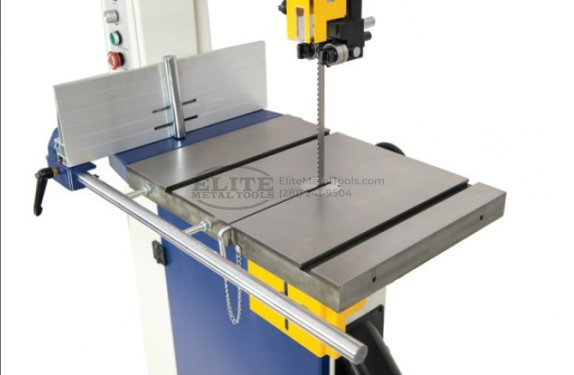

• Machined Cast Iron Table with Miter Gauge ‘T’ Slots
• Quick-Release Blade Tension System
• Rack and Pinion Upper Guide Adjustments

Specifications

• Motor
  • Horsepower: 2-1/2HP TEFC
  • Amps: 12.5
  • Volts: 220V, 60Hz, 1Ph
• Cutting Capacity
  • Height: 13”
  • Width: 17-1/2”
• Blade
  • Width: 1/4” – 1-3/8”
  • Length: 153”
  • 2 Blade Speeds: 82-1,800 / 140-3,280 FT/MIN
• Table
  • Size: 21-1/2” x 15-3/4”
  • Left Side Extension: 4-3/8” x 15-3/4”
  • Left Tilt: -10°
  • Right Tilt: 45°
  • Miter Gauge: “T” Slot (2) 3/4” x 3/8”
  • Height to Floor: 35-1/2”
  • Fence Size: 20-7/8” x 1-7/8” x 6”
• Overall
  • Height: 72-7/8”
  • Width: 38-1/2”
  • Depth: 28-1/8”
  • Base Size: 29-5/16” x 18-1/8”
  • Dust Port: 2@4”
  • Net Weight: 403 Lbs.
  • Shipping Weight: 511 Lbs.
  • Shipping Carton: 33-3/4” x 22-1/4” x 79-3/8”
  • Warranty: 5 Years

Additional Information

Product Documents

• Download Brochure
