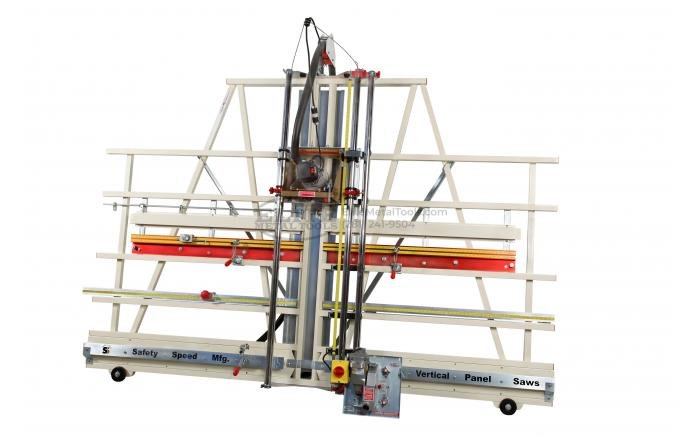

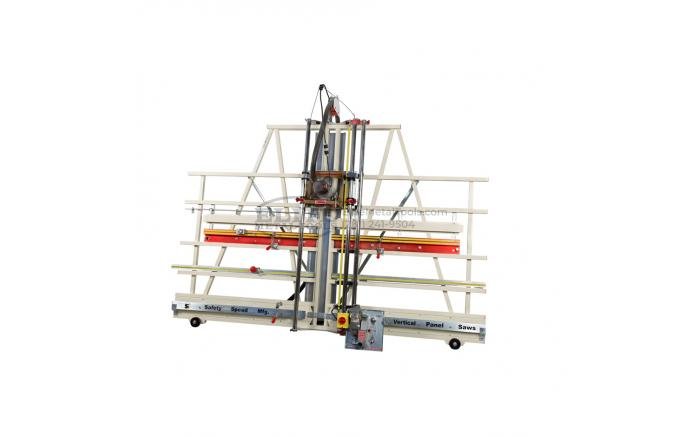

Safety Speed Single Phase 120V Panel Saw and Router Combo SR5U

Description

This machine is perfect for cabinet shops, composite panel fabrication and other applications where both panel sizing and panel routing are required functions. Ask about our V-grooving package.

Standard Equipment

• 3 Hp, worm driven saw motor.
• 3 ¼ Hp, heavy-duty router motor.
• 10 ft. welded steel frame.
• Chrome-plated 1 ¾” guide tubes.
• 8 Nylatron roller bearing system.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard 4 material clamps.
• Integrated dust collection bonnets.
• Solid aluminum material rollers.
• Enclosed counterweight system.
• Adjustable floating router head.
• MID-WAY FENCE™ with stop.
• MID-WAY FENCE™ flip stop.
• 2 blind dado stops.
• Extended warranty.
• TUV certified to UL/CSA standards.

Features

• Max. Crosscut:  62″/1575mm
• Max. Rip Cut:  Unlimited
• Max. Cut Thickness:  1-3/4″/45mm
• Cut Accuracy, Straight and Square:  1/64″/.4mm
• Saw Blade Diameter:  8″/210mm
• Motor:  13 amp, 120V, 220V
• Router Motor:  15 amp, 120V, 220V
• Frame Length:  120″/3050mm
• Shipping Weight:  550lbs
• Shipping Dimensions:  124″ x 17″ x 92″
