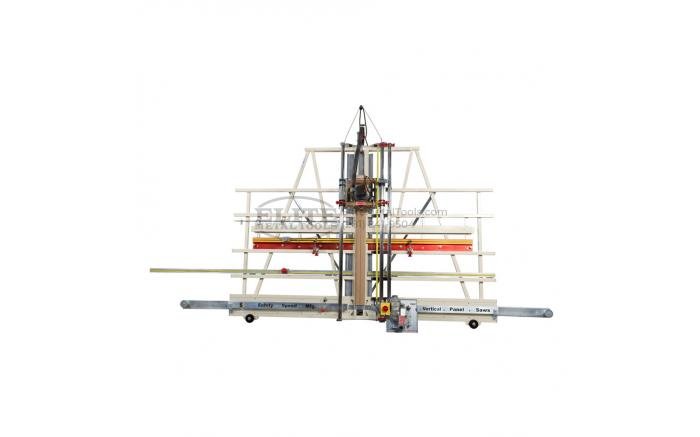

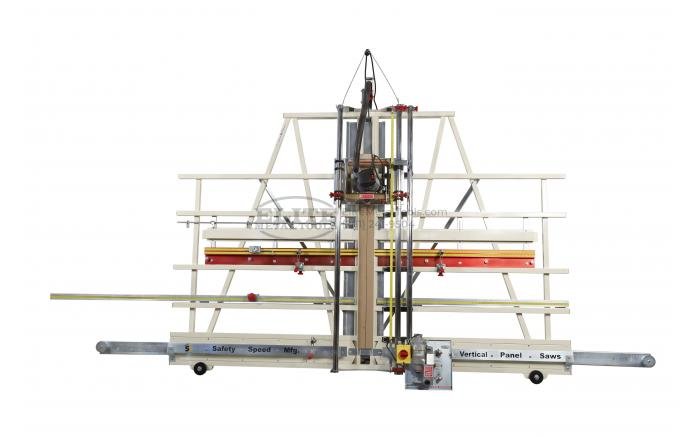

Safety Speed Single Phase 120V ACM Panel Saw and Router Combo SR5UA

Description

The unique design of this unit allows for accurate cutting and V-Grooving of ACM (Aluminum Composite Material) panels. Features a unique floating router with a nylon guide guaranteeing a consistent depth of cut. The saw can also be switched over to a router in less than one minute. It also features a dust system in place to collect debris while cutting and routing.

Standard Equipment

• 3 Hp worm drive saw motor.
• 3 ¼ Hp heavy-duty router motor.
• 10 ft. Welded steel frame.
• Chrome plated 1 ¾” guide tubes.
• 8 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical and horizontal cutting.
• Thin material pressure guard.
• Solid aluminum material rollers.
• Counterweight system.
• Adjustable floating router head.
• MID-WAY FENCE™ with stop.
• 4 material clamps.
• 2 blind dado stops.
• Wheels.
• Fixed Stand.
• Extensions.
• Left and right quick stop gauges.
• MID-WAY FENCE™ flip stop.
• Dust hood and hose kit.
• Hold down bar.
• Specialty saw blade and router bit for v-grooving
• 1 year parts warranty.

Features

• Max. Crosscut:  62″/1575mm
• Max. Rip Cut:  Unlimited
• Max. Cut Thickness:  1-3/4″/45mm
• Cut Accuracy, Straight and Square:  1/64″/.4mm
• Saw Blade Diameter:  8″/210mm
• Motor:  13 amp, 120V
• Router Motor:  15 amp, 120V
• Frame Lenght:  120″/3050mm
• Shipping Weight:  420lbs
• Shipping Dimensions:  124″ x 17″ x 92″
