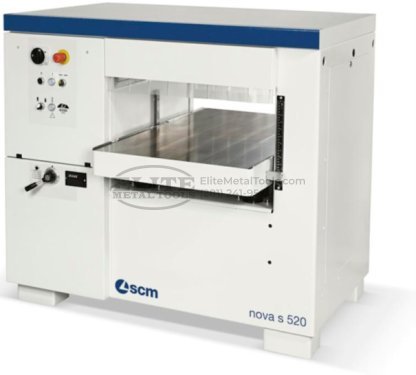

SCM Group 220V Three Phase 20” 4-Speed Thickness Planer with Tersa Cutterhead Nova S 520-T

Features

• TERSA Cutterhead

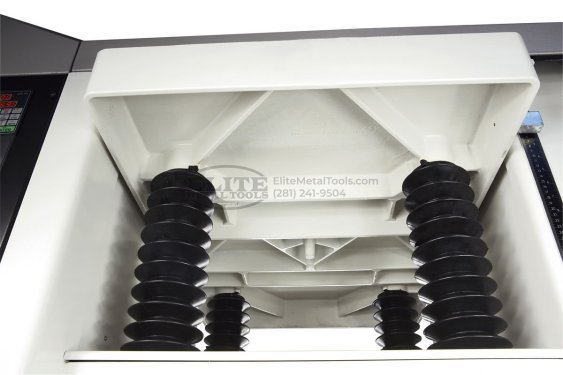

• Worktable movement-sturdy structure with precision: 4 jack screws with acme style threads and dust covers for maximum table support. In addition to providing a stable lifting system which eliminates sniping, the acme threads greatly increase the longevity of what is normally the most common wear item on planers. Furthermore, thanks to a patented design, the chain pressure is not transferred to the jack screw, thus taking the longevity of the machine to the extreme

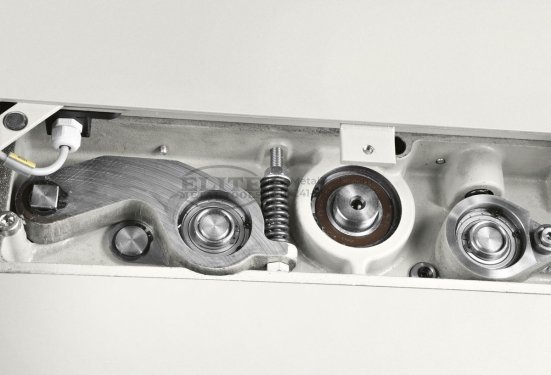

• Feeding rollers on connecting rods, for a perfect finish: the stopping of the work piece and the presence of notches on its surface are eliminated due to the movement system on all three rollers that allows their vertical displacement by rotation and the best linear feeding
• Safety/Protections
  • Soundproof infeed and outfeed barriers
  • Safety microswitch on protection hood
  • Overload switch protection
  • Auxiliary low voltage circuit (110V)
  • Emergency pushbutton
  • Main power switch can be locked in the off position with a padlock

Standard Equipment

• Monoblock base and cast iron table
  • The solid welded base undergoes a treatment call normalization which stabilizes the metal and assures exact tolerances. All machine mechanisms are mounted, aligned, and referenced to the base. This design is vastly superior to frames that are bolted together and have no true reference point. The cast iron tables are machine polished. These castings are ribbed to ensure maximum strength and to avoid problems with the tables warping or breaking during use
• Powered planer table lifting: 2 speeds with micrometric adjustment
• Numerical readout of working height with decimal control
• Planer table movements by means of 4 steel screws with 2 side linear guides
• Helicoidal steel infeed roller
• Rubber-coated steel outfeed roller
• Interchangeable feed rollers
• (4) Cr TERSA knives (Dims 1.37” x 0.06” x 20.44”)
• Push stick and push handle
• Toolbox: wrenches, allen wrenches, user manual, spare parts catalog

Specifications

• Motor power: 11HP – 8kW
• Working width: 20.44”
• Worktable length: 35.37”
• Max depth of cut: 0.31”
• Cutterblock diameter: 4.75”
• Cutterhead speed: 4500 rpm
• No of knives: 4 (dims 1.37” x 0.06” x 20.44”)
• Min/max working thickness: 0.12”/11.75”
• Min working length/width: 8.69”/0.37”
• Feed speed: 16-26-39-59 fpm
• Exhaust outlets diameter: 5.87”
• Nominal extraction air consumption: 754 CFM
• Air exhaust speed: 66 ft/s
• Electrical Requirements: 220V Three Phase 60Hz 25A
• Machine Dims: 55” x 40” x 55”
• Approx weight: 1,737 lbs
• Rollers
  • Infeed: steel-sectioned
  • Outfeed: steel-without coating
  • 2nd outfeed roller: steel [with or w/o rubber coating]
• Thickness table extension
