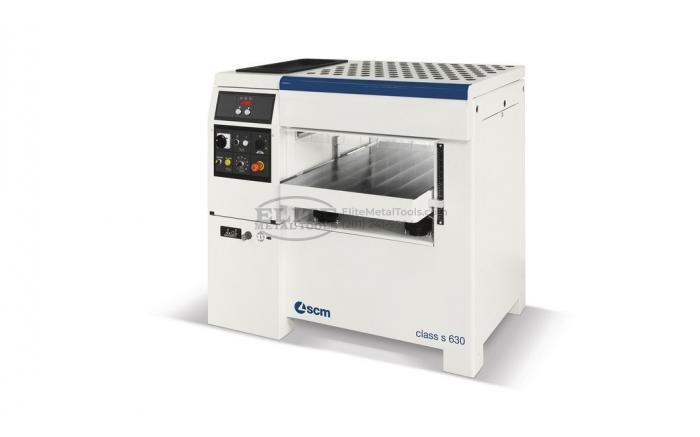

SCM Group Heavy Duty Planer with Xylent Head Class S630 X

Description

24” Xylent Planer

The Class S 630 X is a heavy duty, 24” planer designed to meet the needs of the most demanding environments. It features a monoblock base, work table with support rollers and breakthrough XYLENT technology. This technology gives an exacting finish while reducing ambient noise decibel output significantly

Electronic Led Readout

The Class S 630 X has an ergonomically positioned controller which gives an electronic readout of the planer thickness. Also featured as standard is a variable feed speed control.

XYLENT Spiral Cutterhead

This amazing SCM Group Jointer now comes with the most innovative solution for soundless planing in the world. The 24” cutterhead version comes with a spiral knife cutterblock with 3 series of knives. Totaling 105 plates of 15x15x2.5mm. These are four self-locking and self-centering screw knives. With each cutterhead you will also receive 1 dynamometric key for the correct and safe use of the locking mechanism (think of a mini torque wrench). Additionally, you will receive two inserts for the dynamometric key.

Major Features

• Spiral, shear cut, XYLENT helical insert cutterhead
• Electric powered movement feed table raise and lower (2 speed)
• Steel, sectioned infeed
• Two rubber outfeed rollers
• Variable feed system
• Powered bearing-assisted feed rollers
• Digital LED readout of working thickness
• Magnetic starter with overload protection
• Table lifting by four high precision jack screws
• Adjustable bed rollers in feed table
• Course and fine thickness adjustment
• XYLENT tool set and maintenance kit
• Total of 20 additional knives
• Dust hood

Specifications

• Motor Horsepower: 12 HP
• Working Width: 24 3/4” (630mm)
• Working Height: 1/8” – 11 ¾” (3-300mm)
• Max. Depth of Cut: 5/16” (8mm)
• Minimum Length of Stock: 10 ¼” (260mm)
• Cutter Head Diameter: 4 ¾” (120mm)
• RPM: 4500 RPM
• No. of knives: 105
• Knife Dimensions: 15mm x 15mm x 2.5mm
• Table Size: 24.75” x 39.4” (630mm x 1000mm)
• Feed Speeds (Variable): 4 – 20 m/min (13 – 65 FPM)
• Infeed Roller: Steel sectional, power driven
• Outfeed Roller (x 2): Rubber, power driven
• Dust Hood Diameter: 150mm
• Noise Level (dB): 70
• Overall Dimensions (L,W,H): 51″ x 40″ x 45”
• Shipping Weight: 2,710 lbs
• Net Weight: 2,550 lbs
• Electrical Requirements: 230V
• Dust Extraction: 980 CFM
